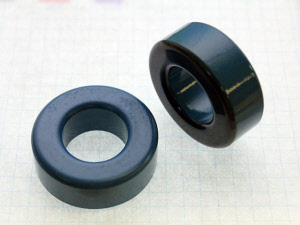

t184-1

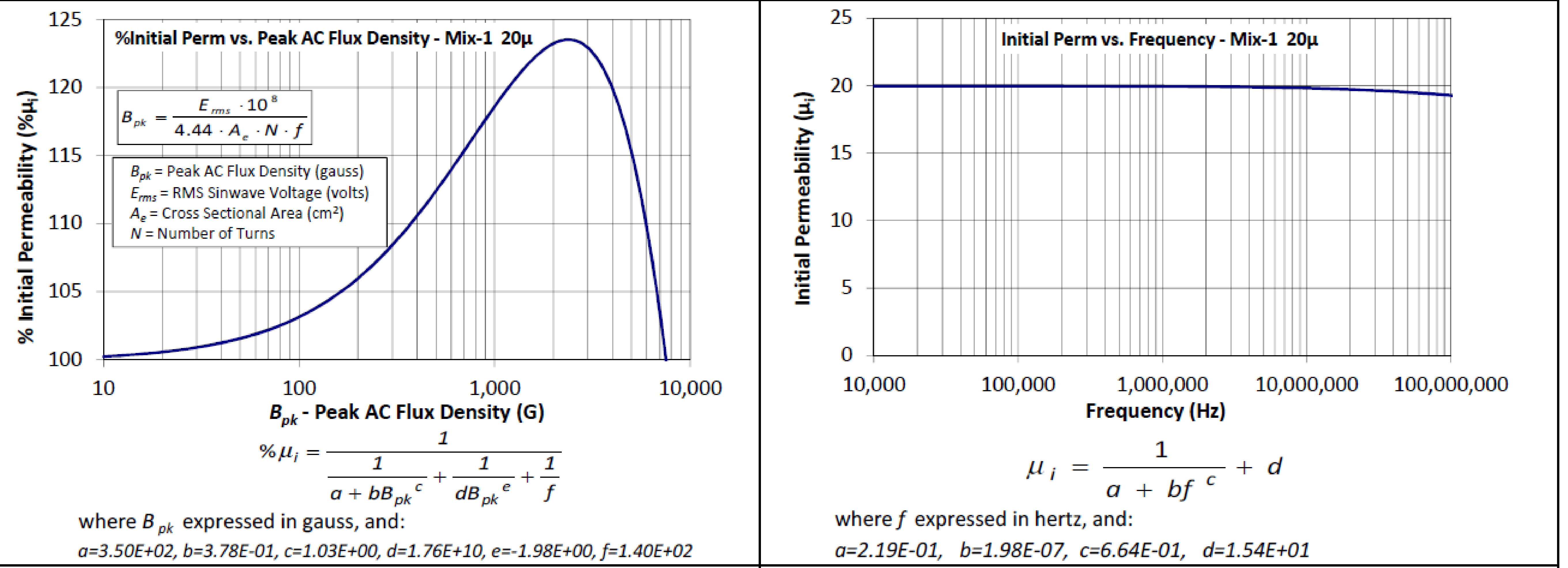

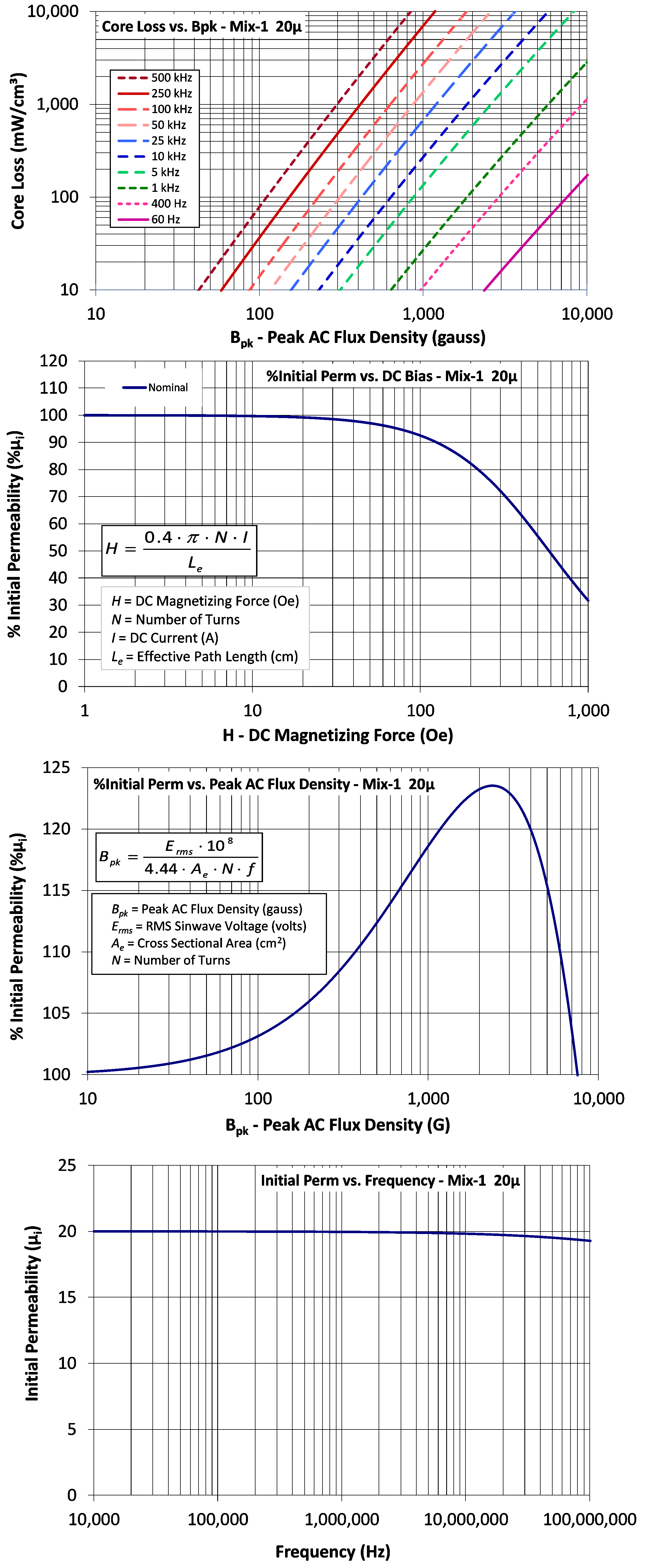

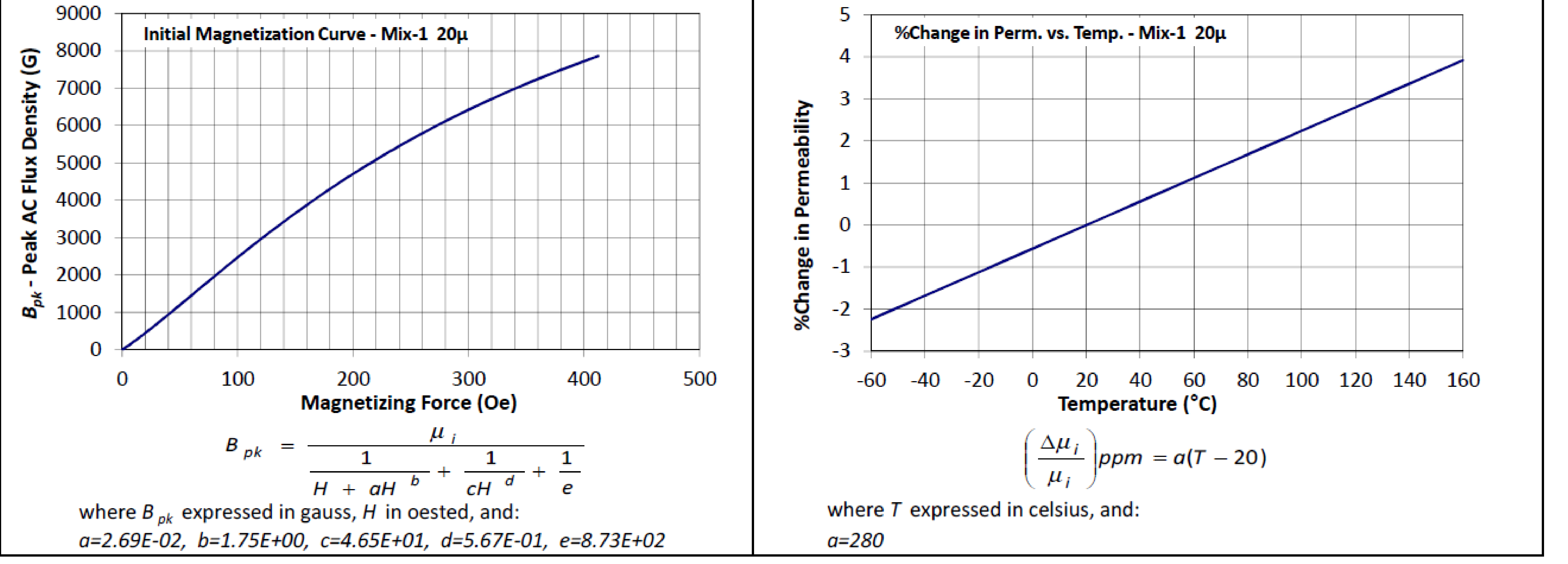

Q-Kurven Material 11

Material 11

μi(reference)

20

Color

Blue/Clear

Density

6.4 gm/cm3

Bsat

18.5 kG

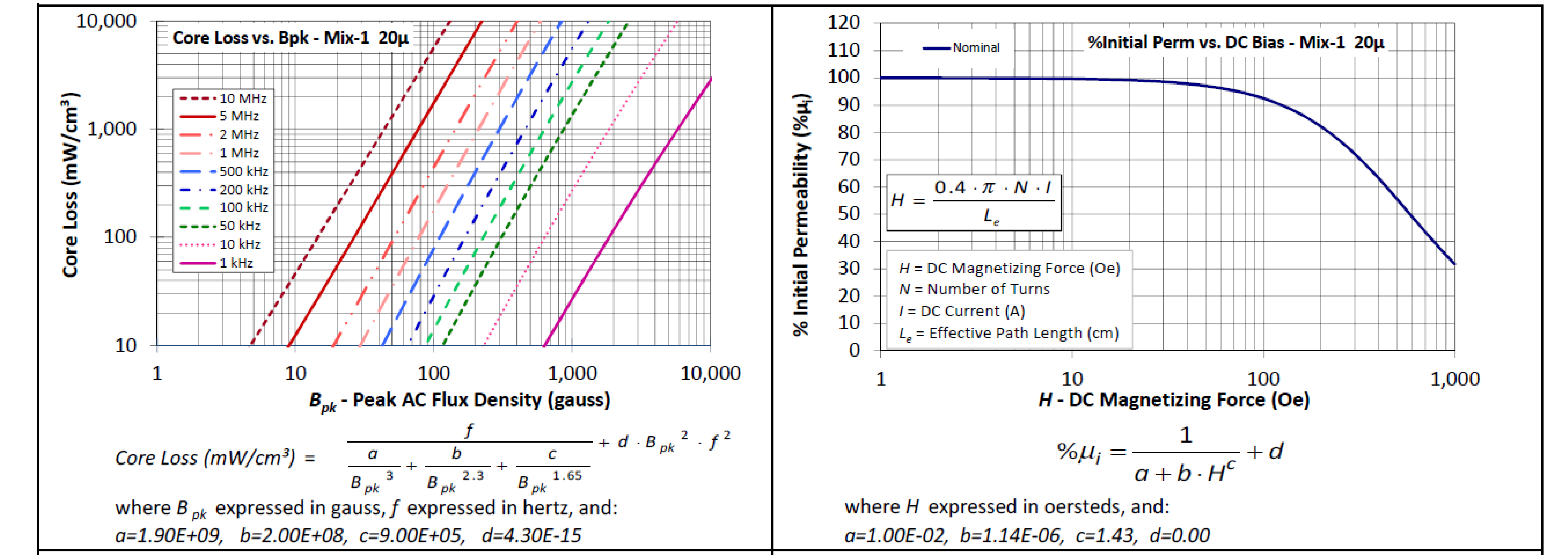

Core Loss (100kHz, 140g)

31 mW/cm³ (nom)

36 mW/cm³ (max)



%Perm at DC Bias (200 Oe)

82.2% (nom)

78.0% (min)
