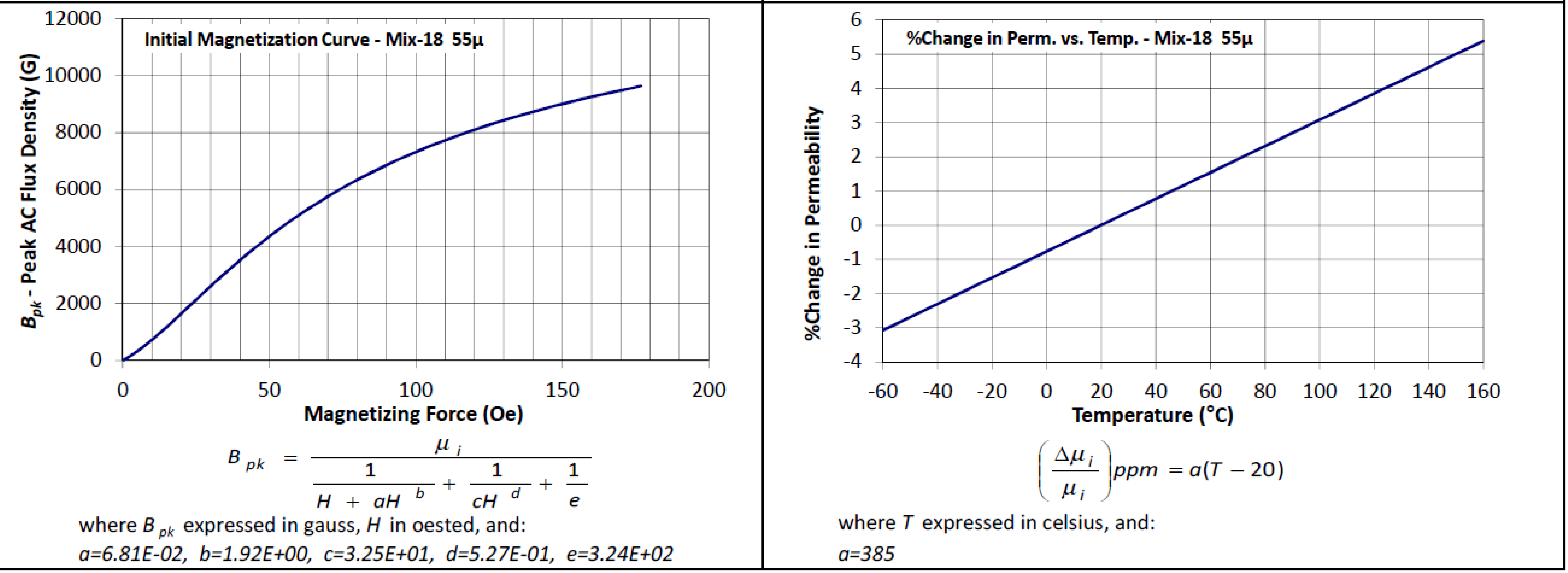

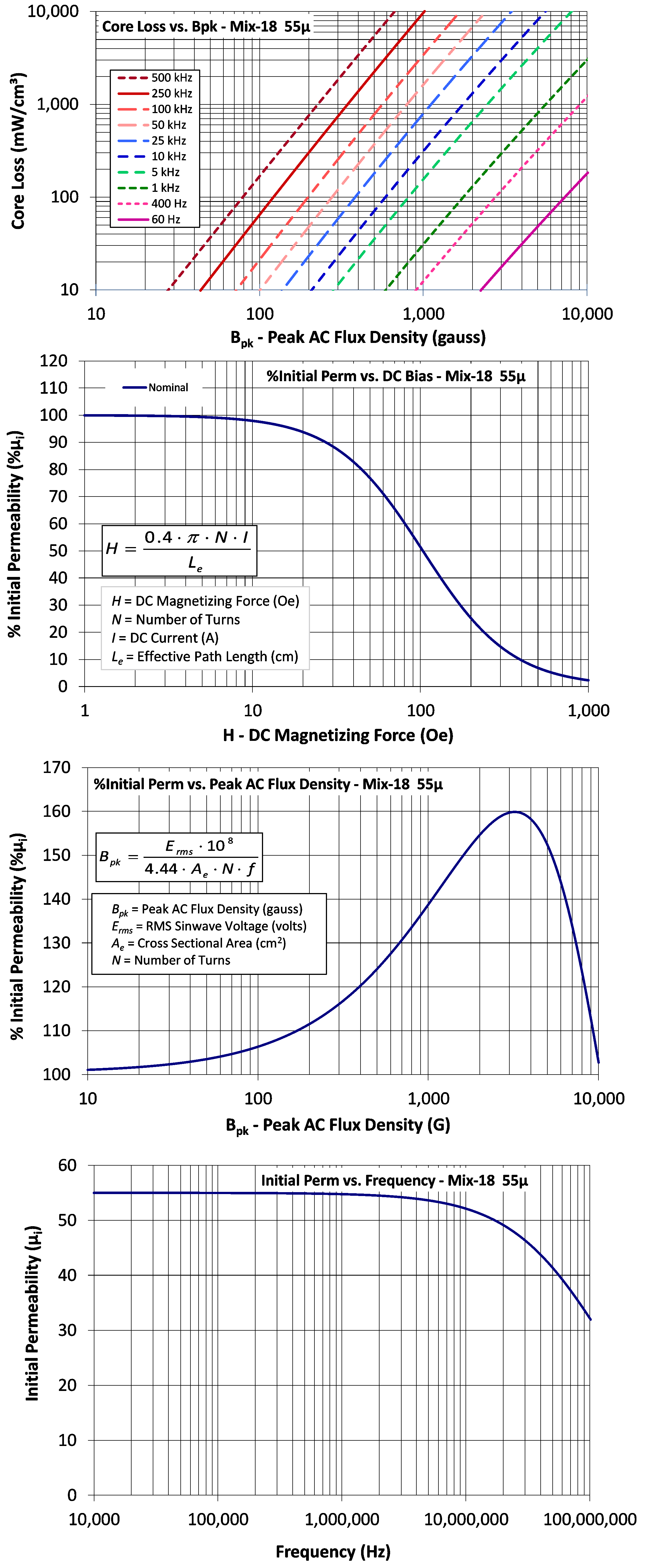

Q-Kurven Material 18
|
Material 18 | ||
|
µi (reference) |
55 |
|
|

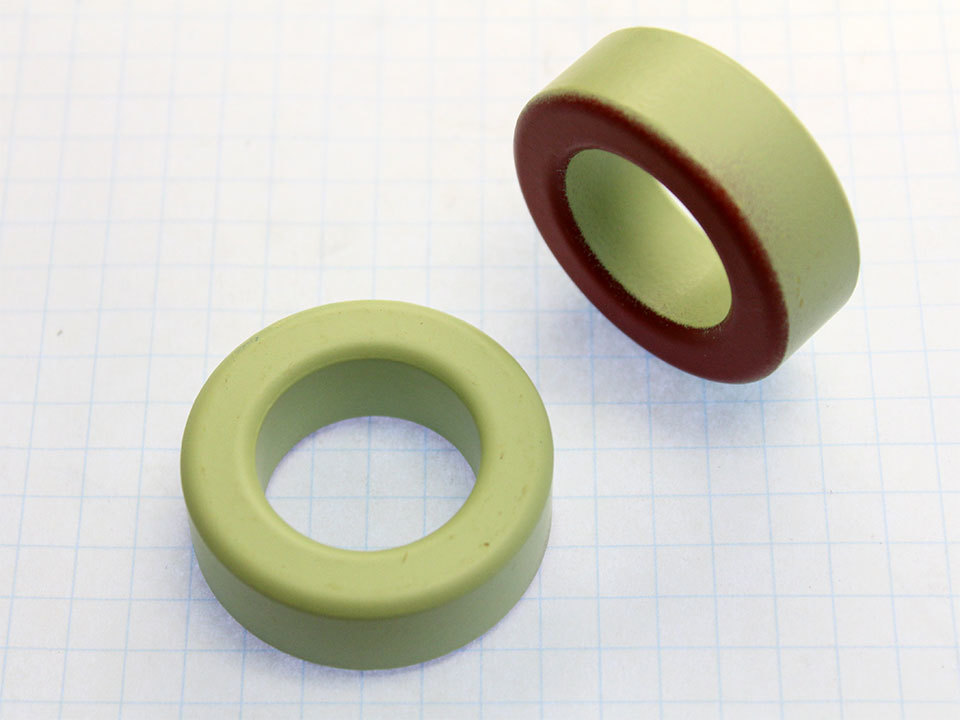

Color |
Grün/Rot | |
|
Density |
6.6 gm/cm3 | |
|
Bsat |
17.8 kG | |
|

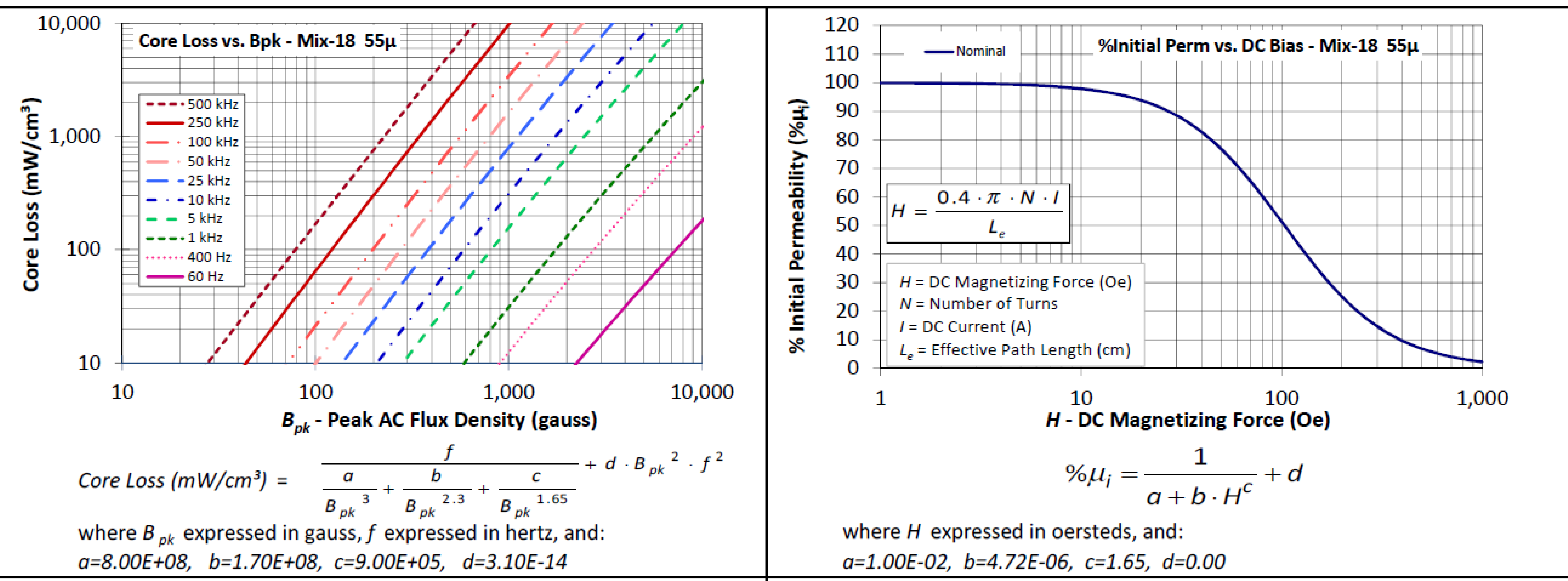

Core Loss (100kHz, 140g) |
46 mW/cm³ (nom) 53 mW/cm³ (max) | |
|
%Perm at DC Bias (100 Oe) |
51.9% (nom) 43.9% (min) | |
|
