Q-Kurven Material 30



Material 30

µi (reference)

22

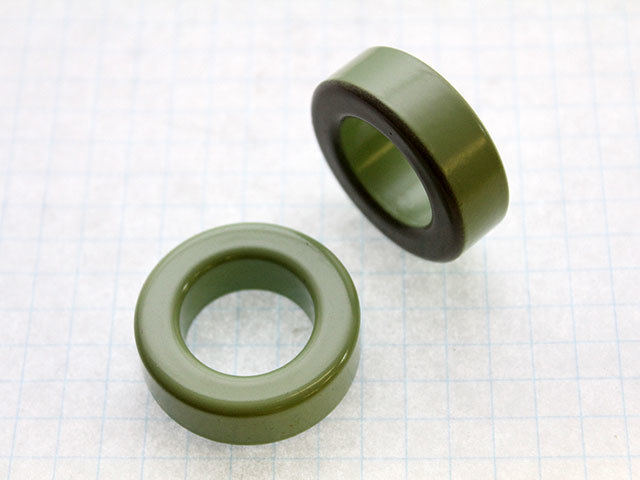

Color

Green/Gray

Density

6.0 gm/cm3

Bsat

16.7 kG

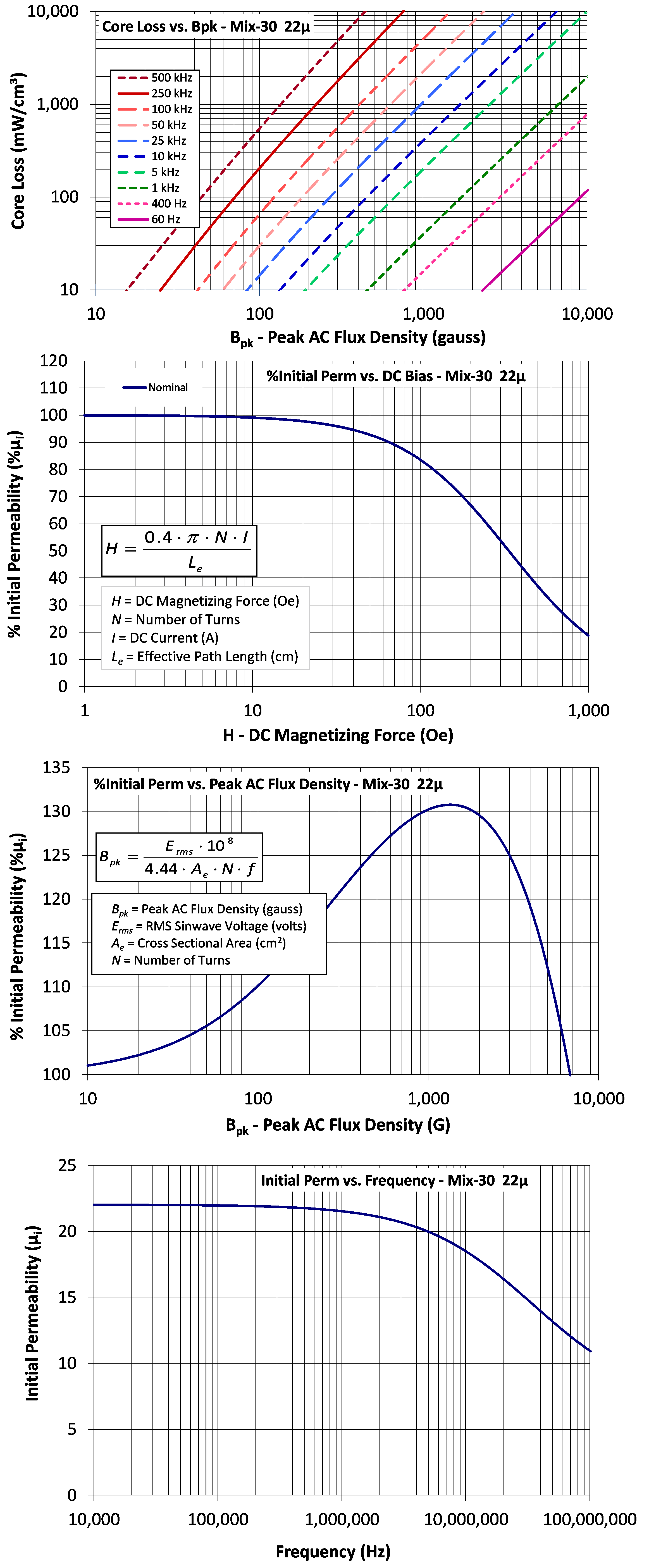

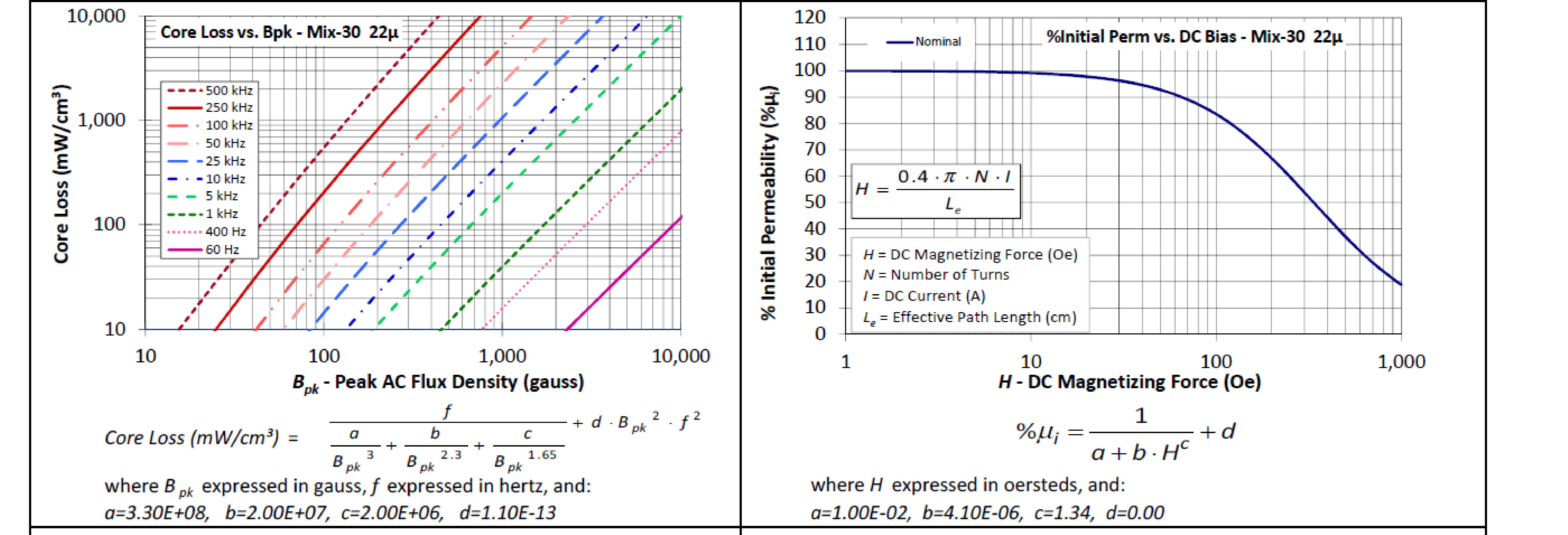

Core Loss (100kHz, 140g)

129 mW/cm³ (nom)

149 mW/cm³ (max)

%Perm at DC Bias (200 Oe)

66.7% (nom)

66.1% (min)
