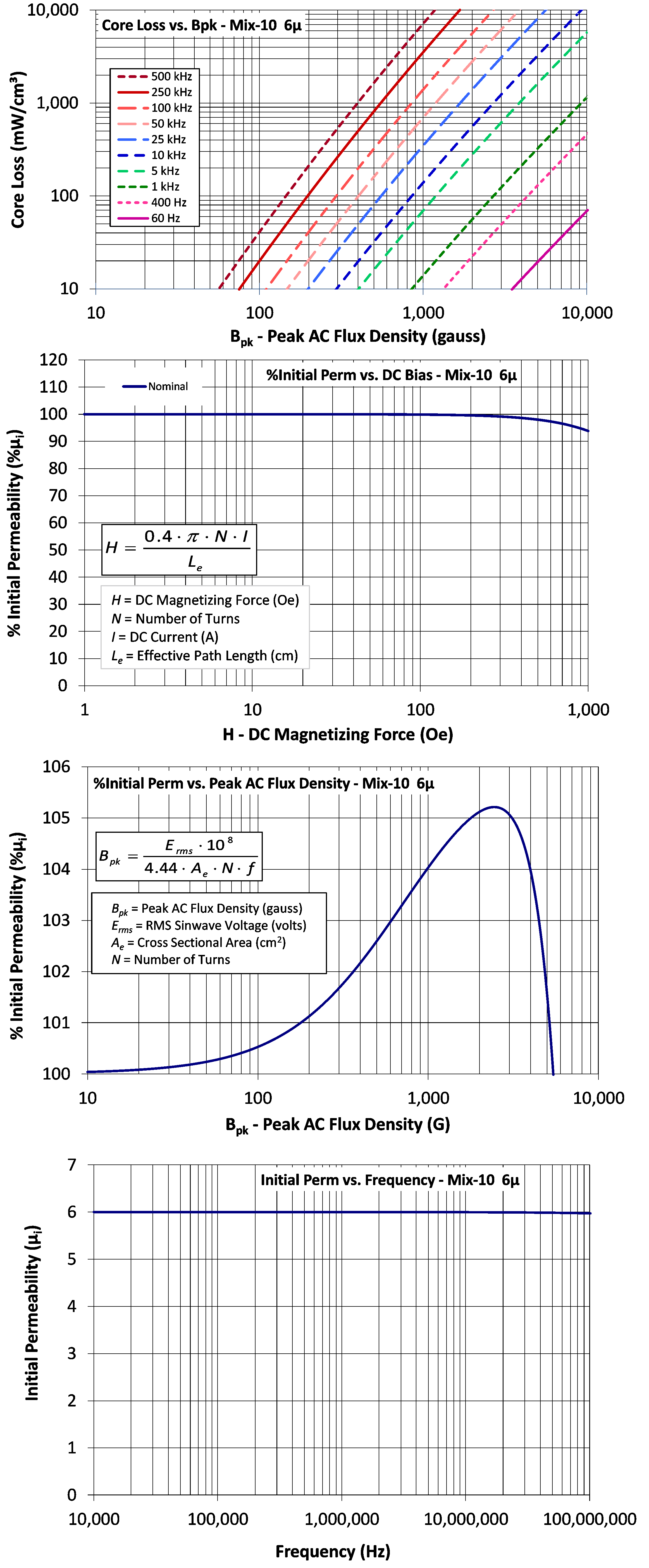

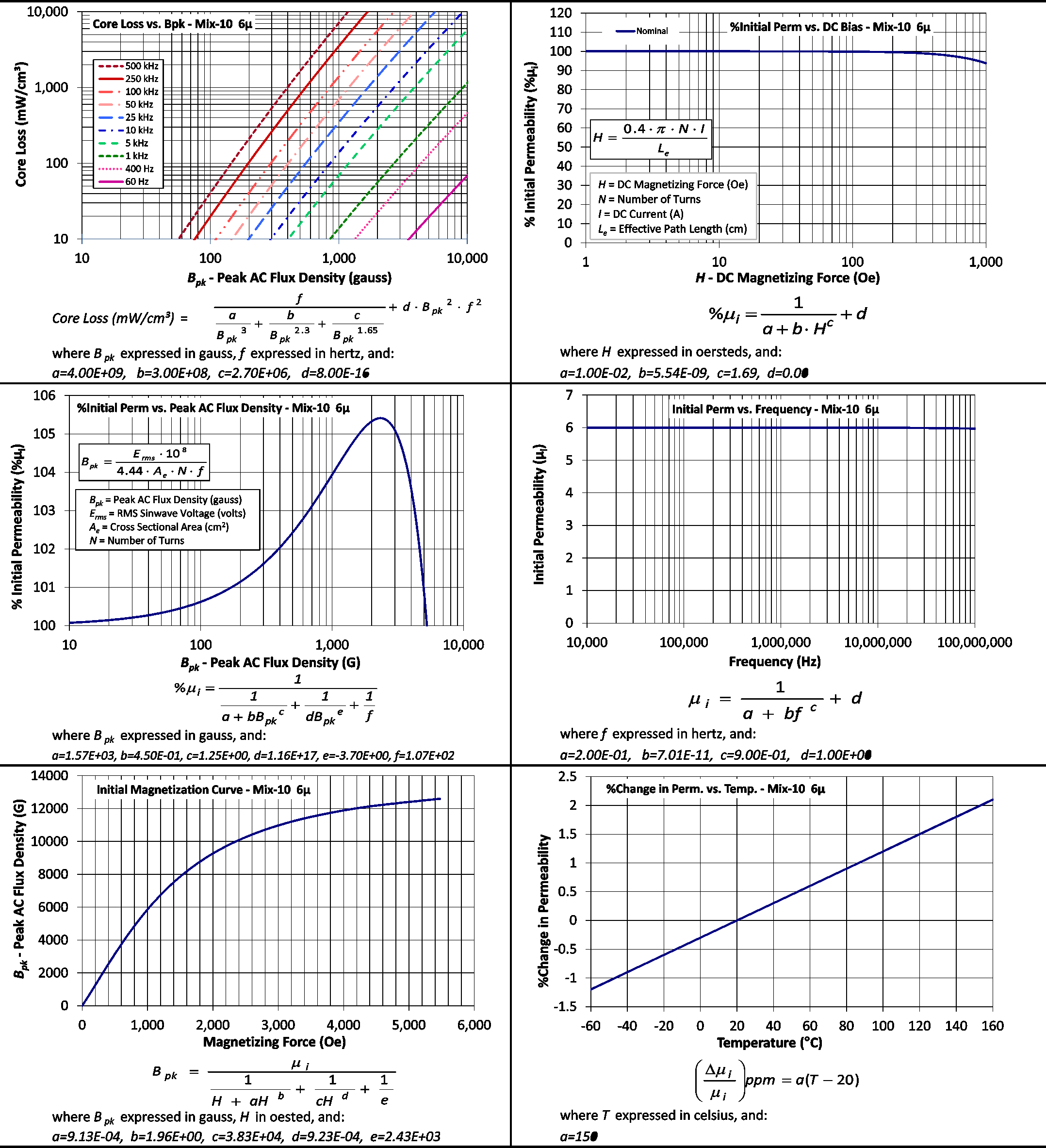

Q-Kurven Material 10
|
Material 10 | ||
|
μi(reference) |
6 | |
|
Color |
Black/Clear | |
|
Density |
4.9 gm/cm3 | |
|
Bsat |
14.6 kG | |
|
Core Loss (100kHz, 140g) |
18 mW/cm³ (nom) 20 mW/cm³ (max) | |
|
%Perm at DC Bias (200 Oe) |
99.6% (nom) 99.4% (min) | |
|
|
|
Material 10 | ||
|
μi(reference) |
6 | |
|
Color |
Black/Clear | |
|
Density |
4.9 gm/cm3 | |
|
Bsat |
14.6 kG | |
|
Core Loss (100kHz, 140g) |
18 mW/cm³ (nom) 20 mW/cm³ (max) | |
|
%Perm at DC Bias (200 Oe) |
99.6% (nom) 99.4% (min) | |
