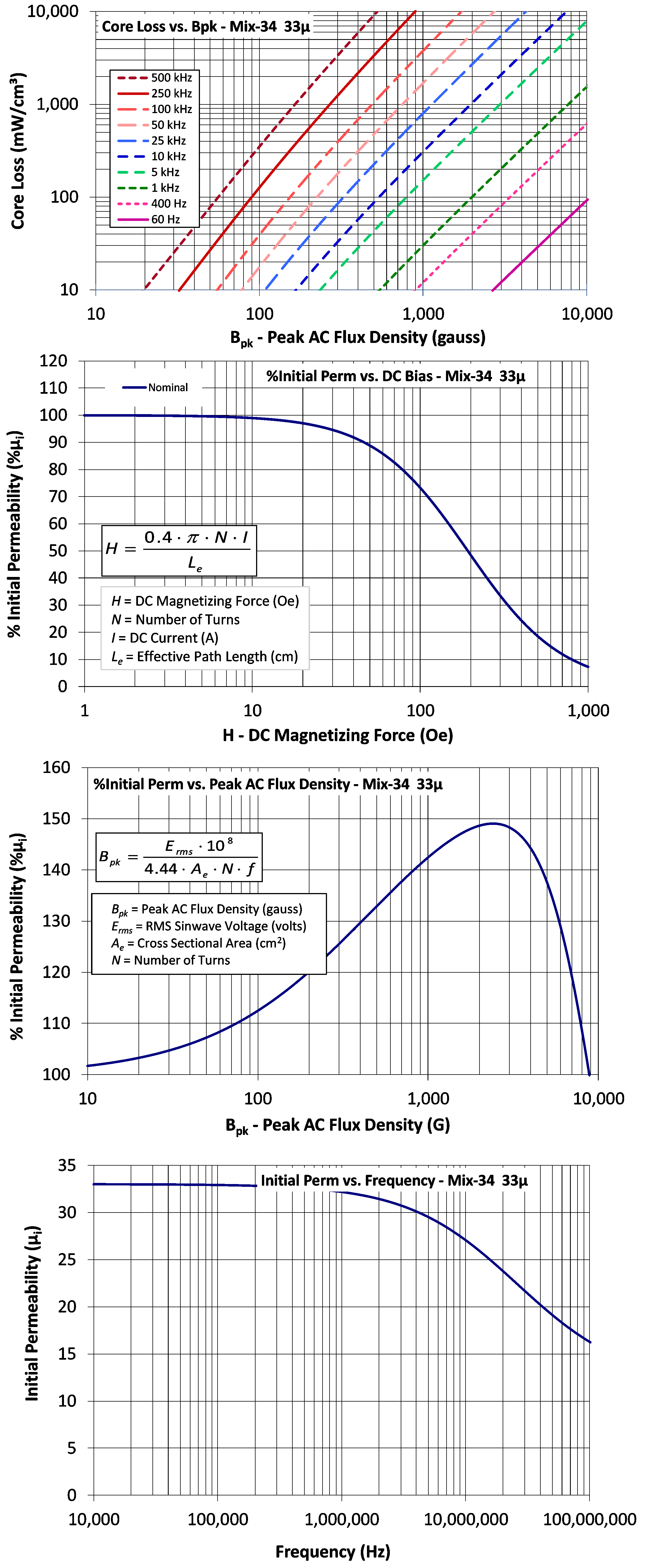

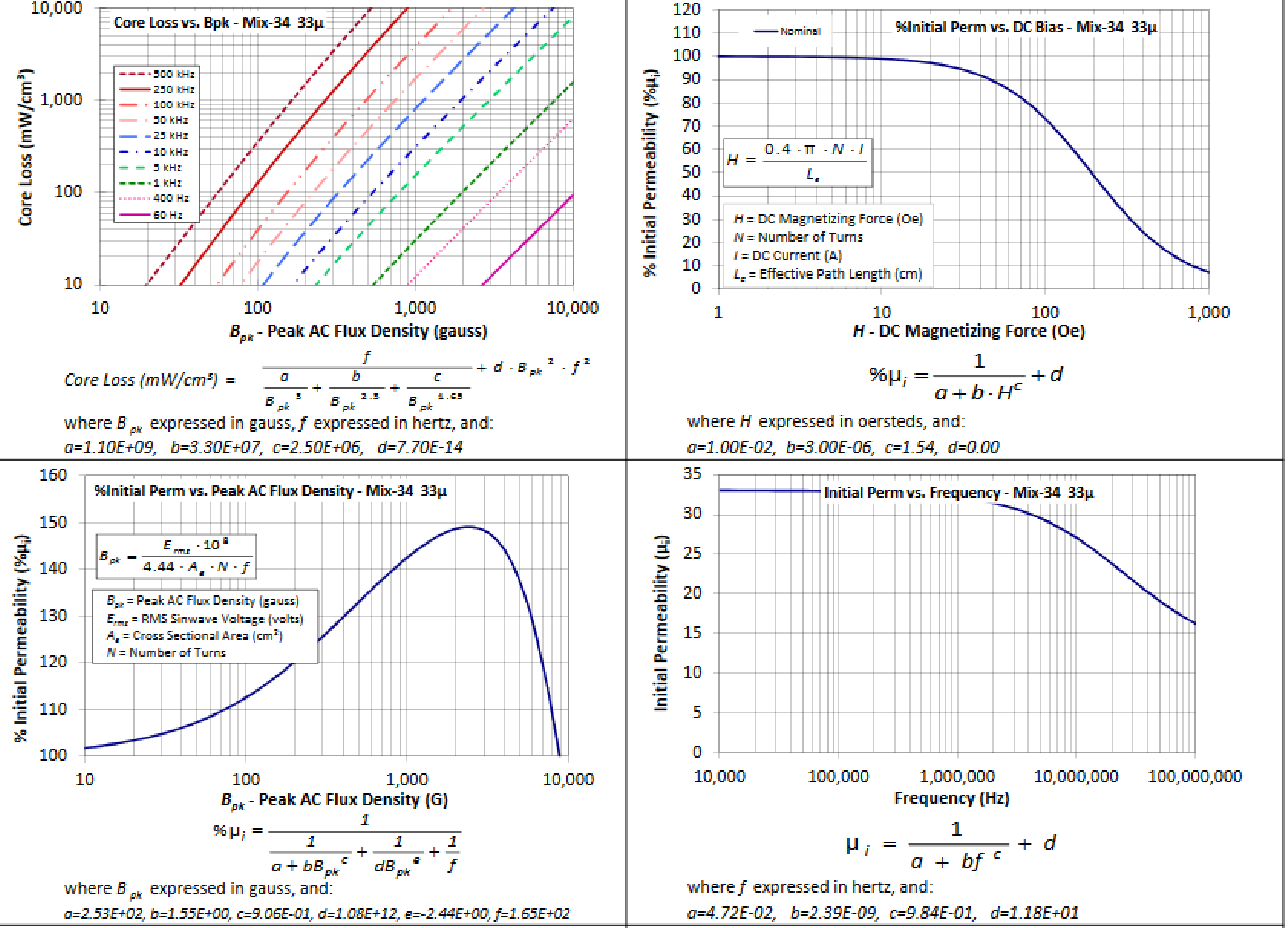

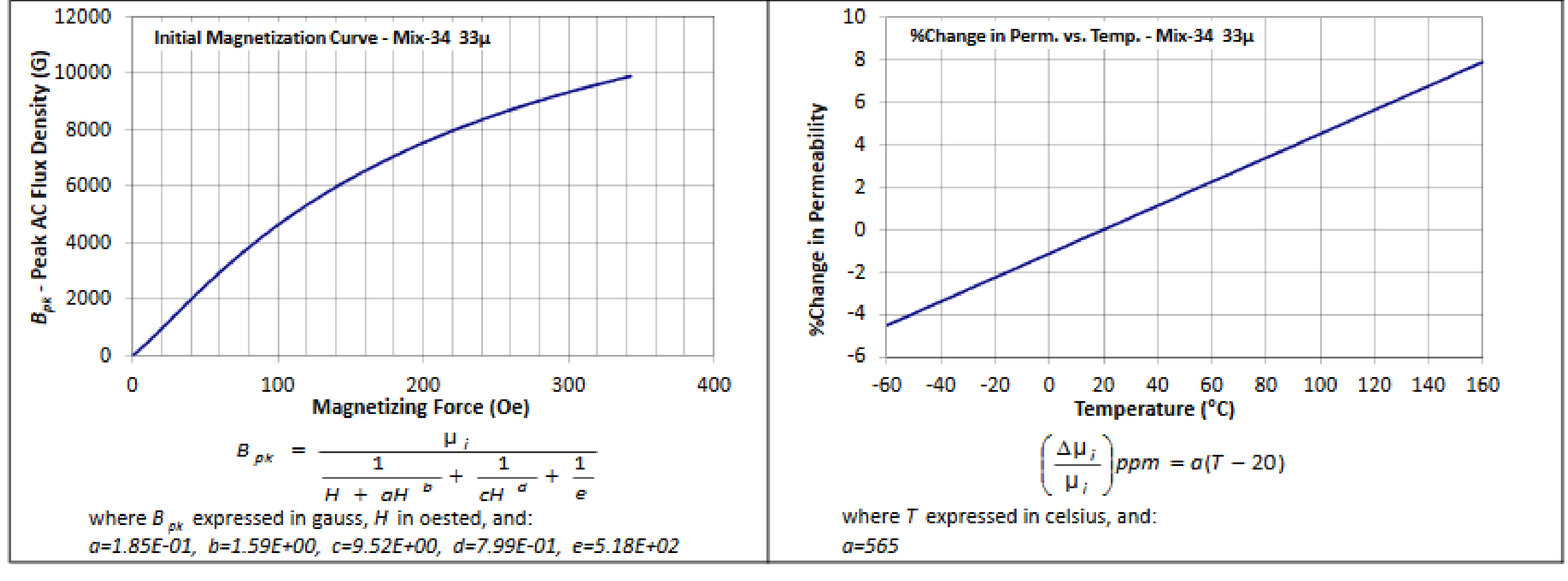

Q-Kurven Material 34
|
Material 34 | ||
|
µi (reference) |
33 |
|
|
Color |
Grau/Blau | |
|
Density |
6.2 gm/cm3 | |
|
Bsat |
18.5 kG | |
|
Core Loss (100kHz, 140g) |
83 mW/cm³ (nom) 95 mW/cm³ (max) | |
|
%Perm at DC Bias (100 Oe) |
55.2% (nom) 47.4% (min | |
|
