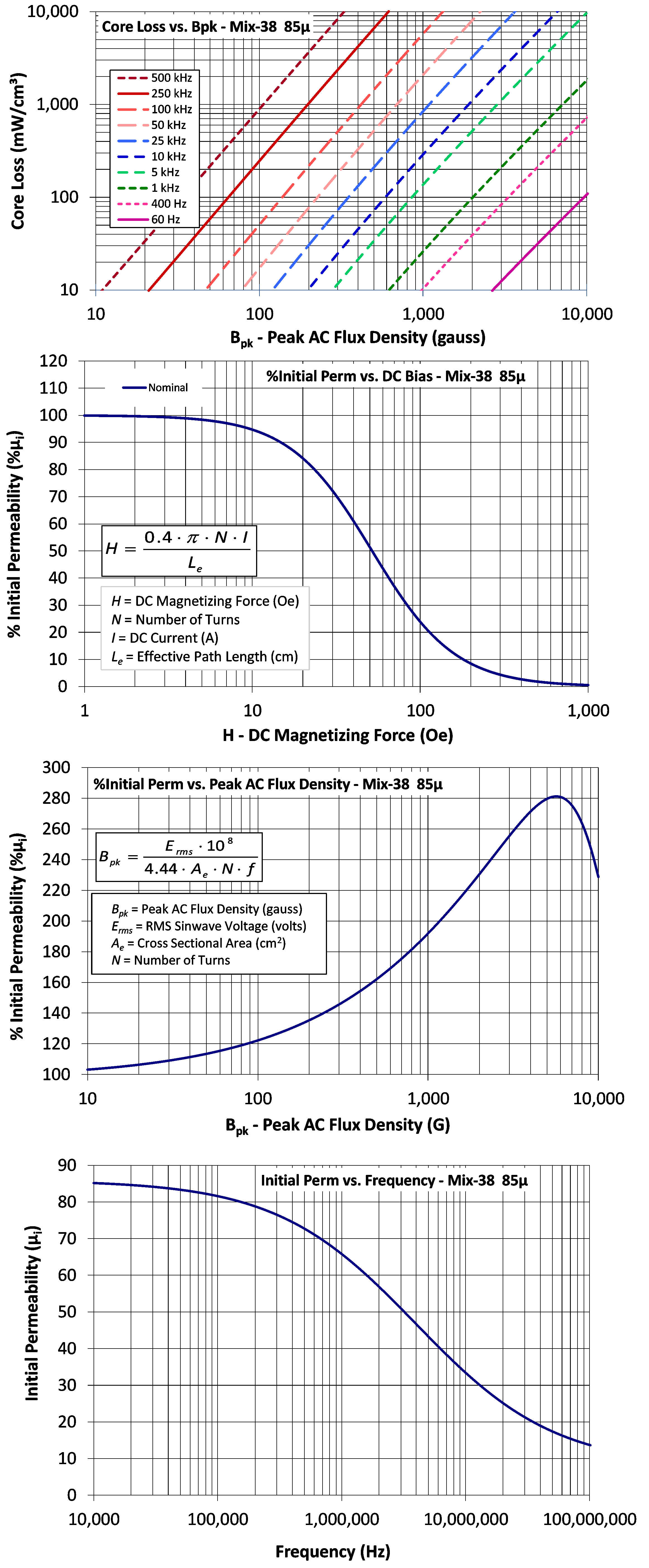

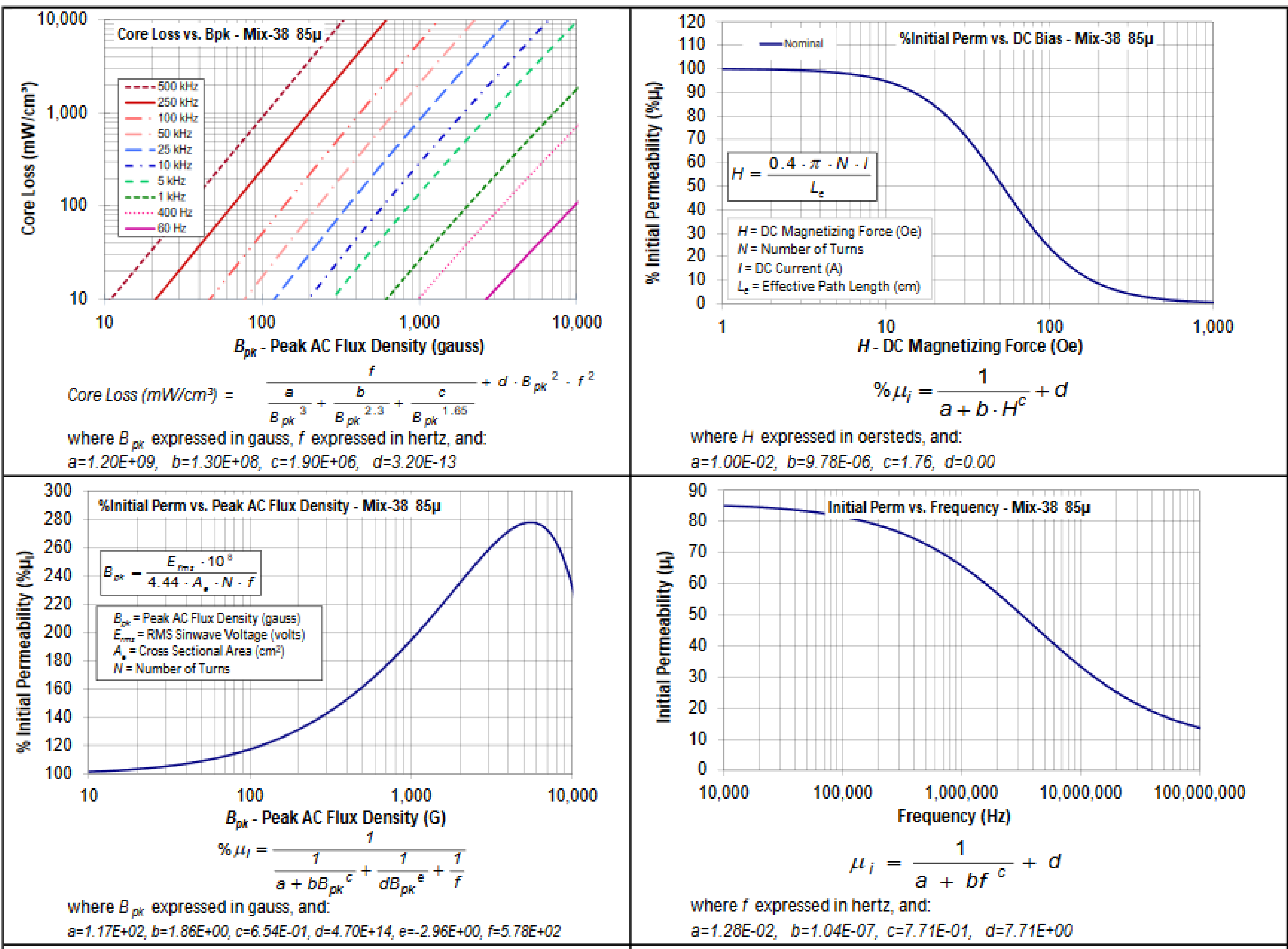

Q-Kurven Material 38



Material 38

µi (reference)

85



Color

Grau/Schwarz

Density

7.1 gm/cm3

Bsat

18.7 kG

Core Loss (100kHz, 140g)

103 mW/cm³ (nom)

118 mW/cm³ (max)

  %Perm at DC Bias (50 Oe)

51.4% (nom)

43.5% (min)
