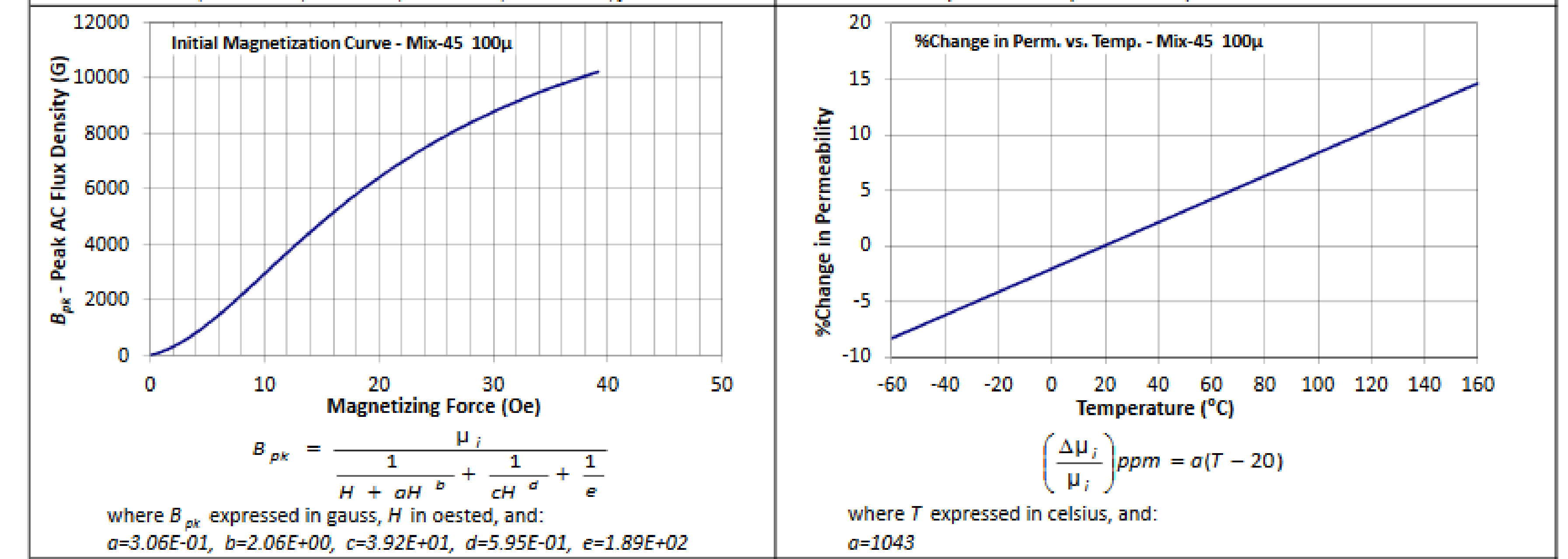

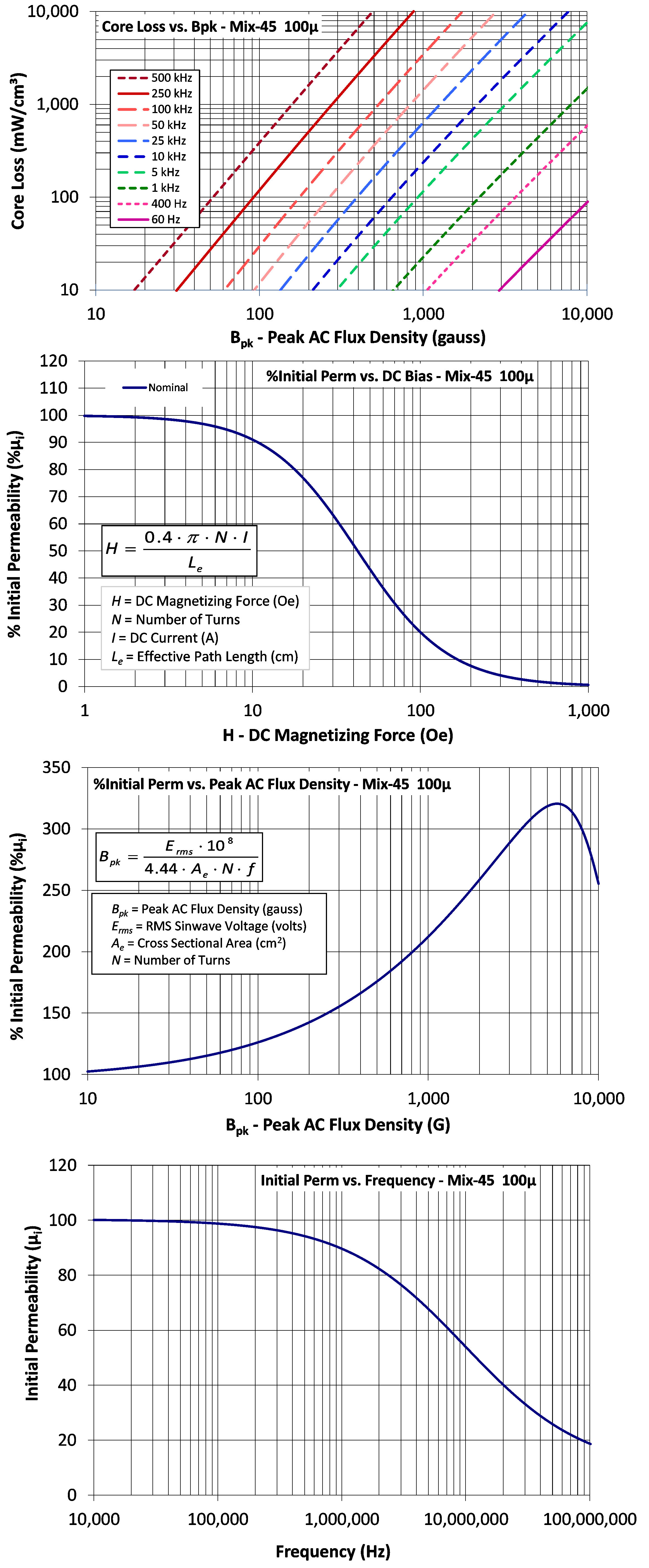

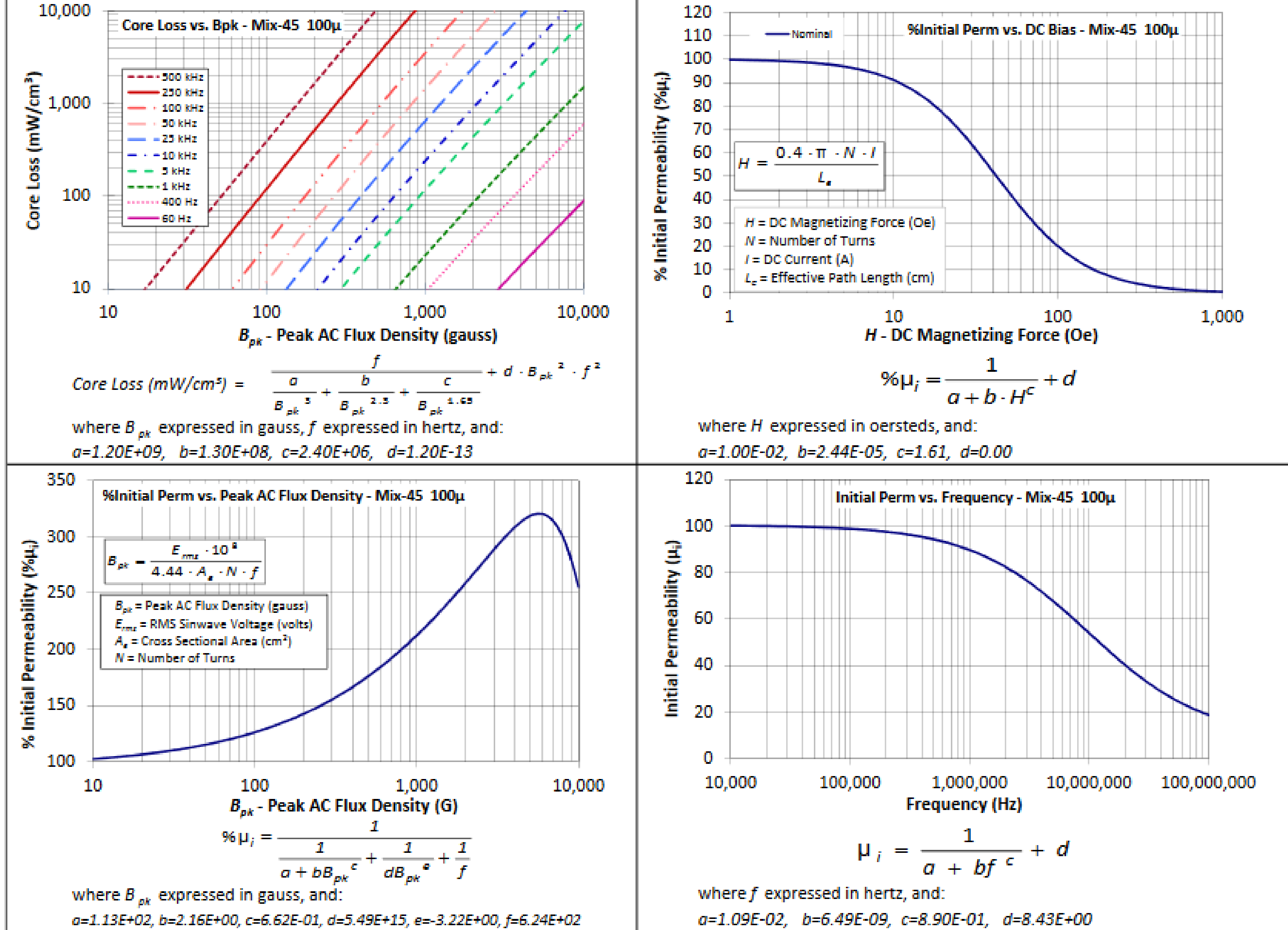

Q-Kurven Material 45
Material 45
μi (reference)
100
Color
Black/Black
Density
7.2 gm/cm3
Bsat
18.9 kG
Core Loss (100kHz, 140g)
61 mW/cm³ (nom)
71 mW/cm³ (max)
%Perm at DC Bias (200 Oe)
43.3% (nom)
36.3% (min)
|
Material 45 | ||
|
μi (reference) |
100 |
|
|
Color |
Black/Black | |
|
Density |
7.2 gm/cm3 | |
|
Bsat |
18.9 kG | |
|
Core Loss (100kHz, 140g) |
61 mW/cm³ (nom) 71 mW/cm³ (max) | |
|
%Perm at DC Bias (200 Oe) |
43.3% (nom) 36.3% (min) | |
