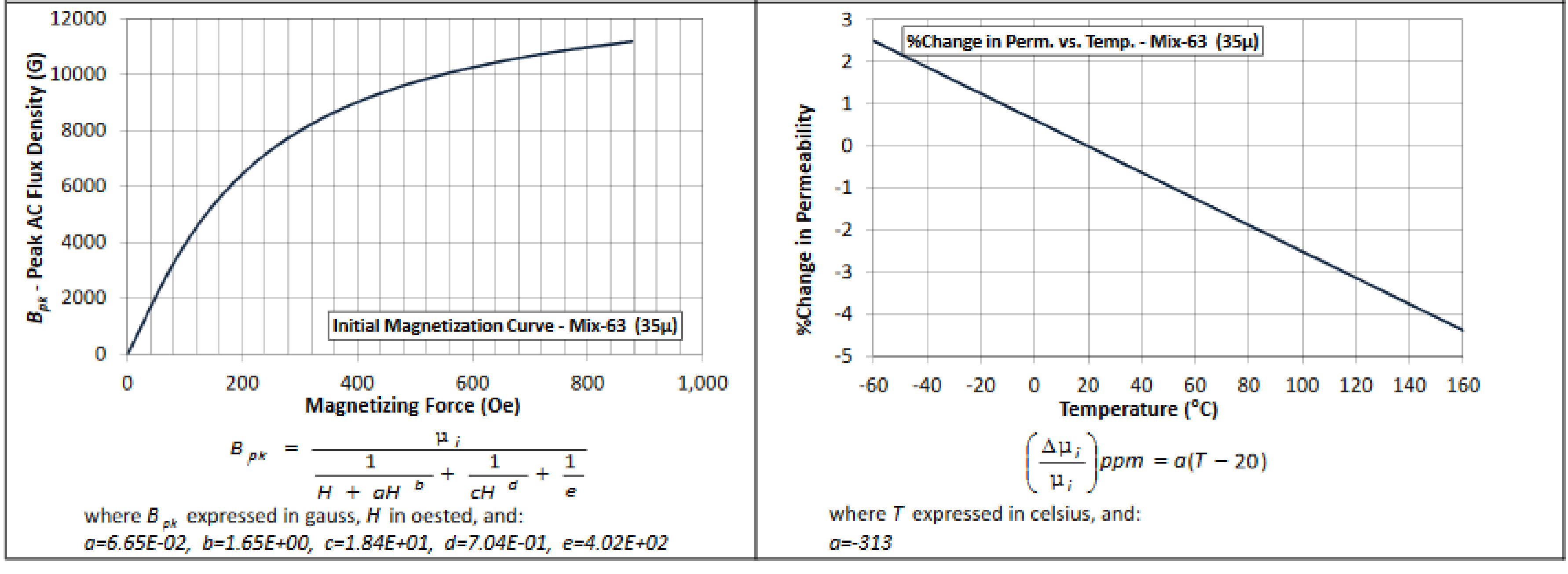

Q-Kurven Material 63
|
Material 63 | ||
|
µi (reference) |
35 |
|
|
Color |
Braun/Beige | |
|
Density |
5.9 gm/cm3 | |
|
Bsat |
14.1 kG | |
|
Core Loss (100kHz, 140g) |
31 mW/cm³ (nom) 35 mW/cm³ (max) | |
|
%Perm at DC Bias (200 Oe) |
51.7% (nom) 46.1% (min) | |
|
