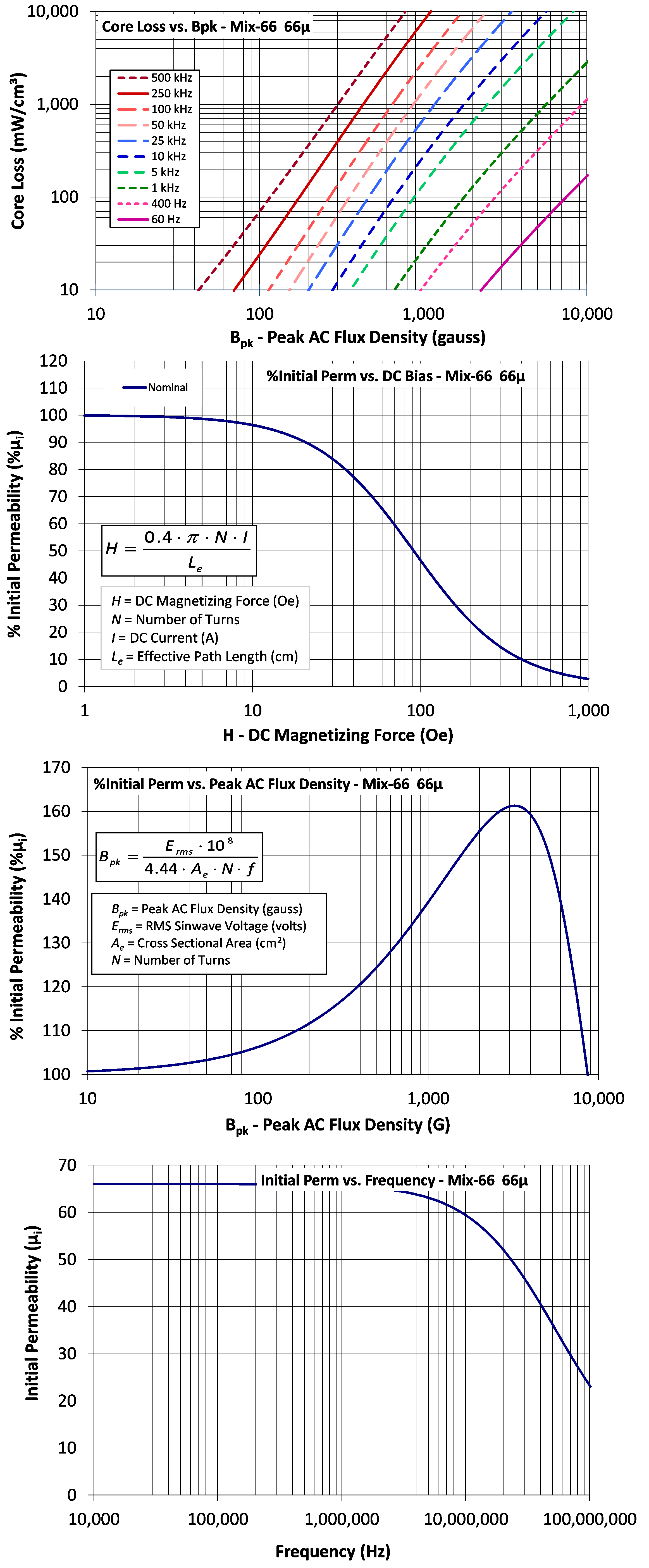

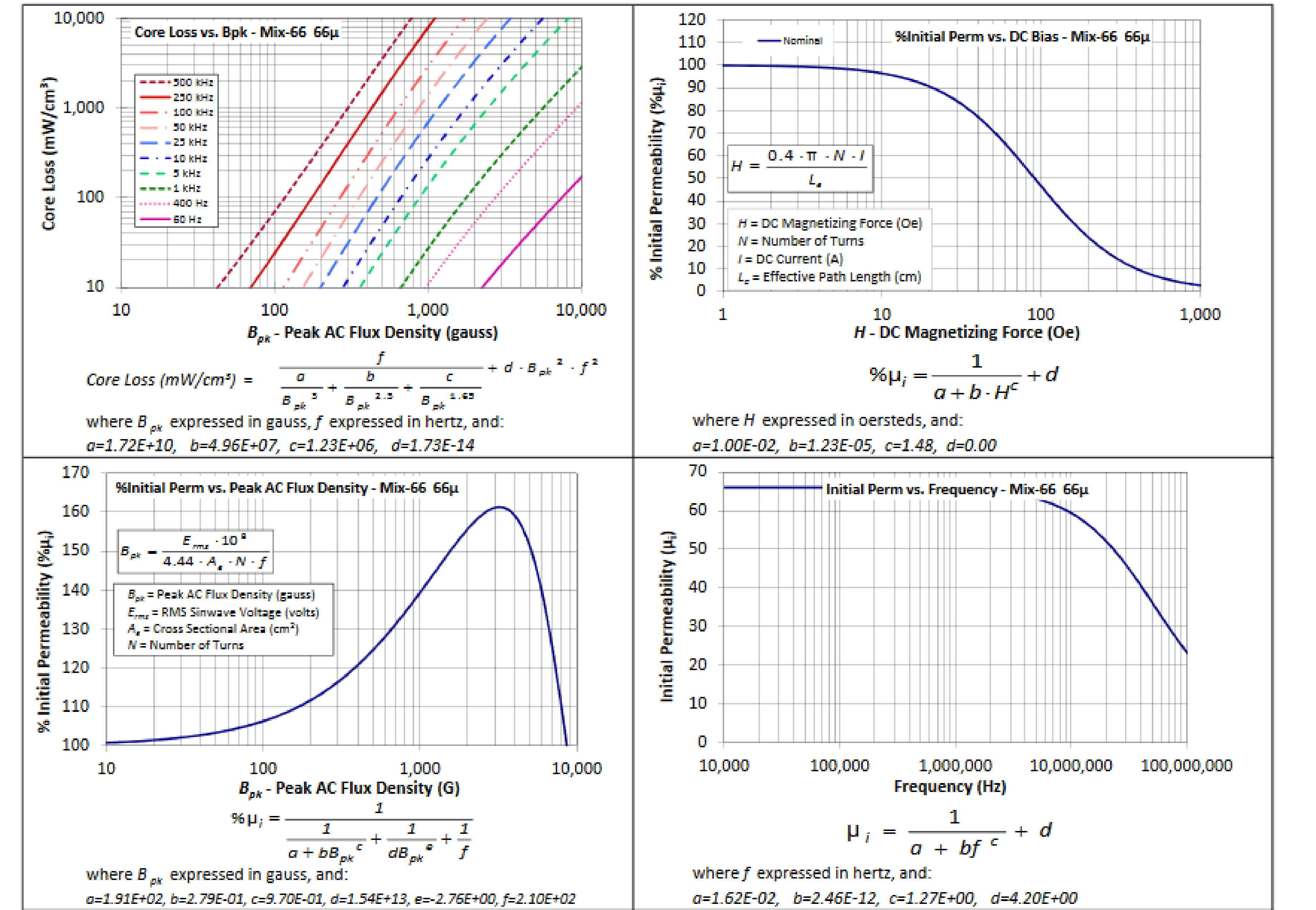

Q-Kurven Material 66
|
Material 66 | ||
|
µi (reference) |
66 |
|
|
Color |
Braun/Braun | |
|
Density |
6.2 gm/cm3 | |
|
Bsat |
16.2 kG | |
|
Core Loss (100kHz, 140g) |
17 mW/cm³ (nom) 20 mW/cm³ (max) | |
|
%Perm at DC Bias (50 Oe) |
71.0% (nom) 65.1% (min) | |
|
