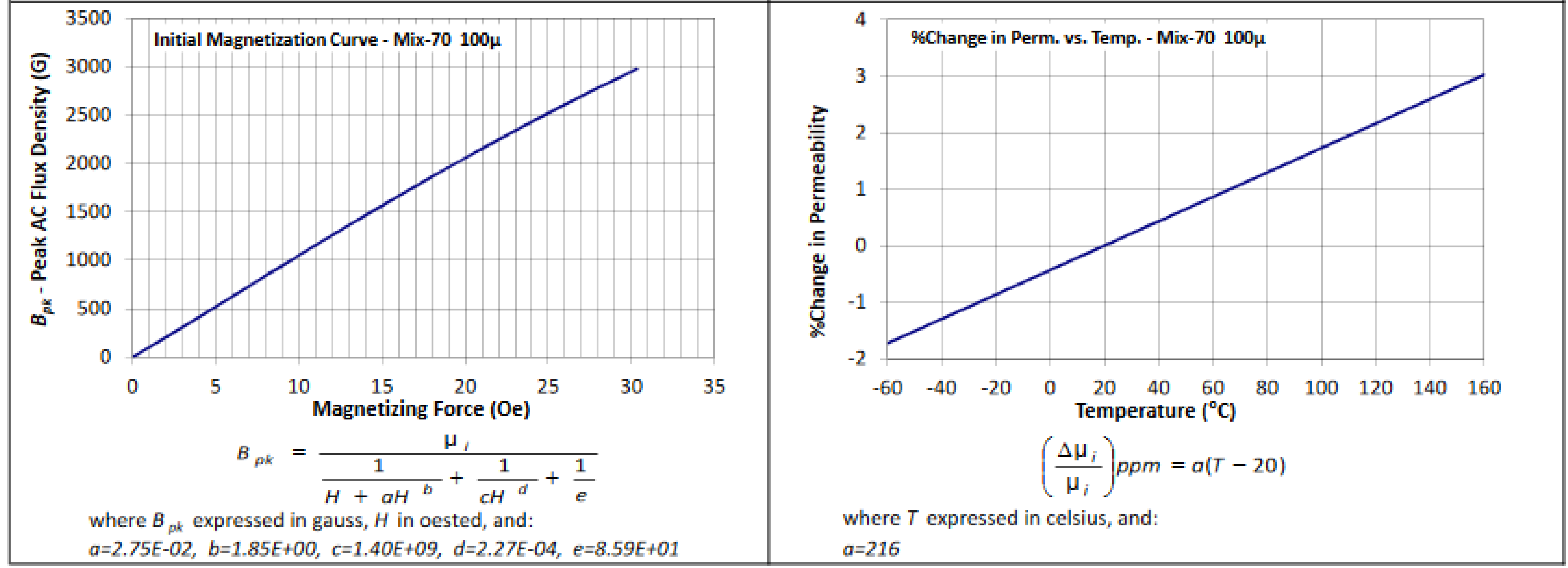

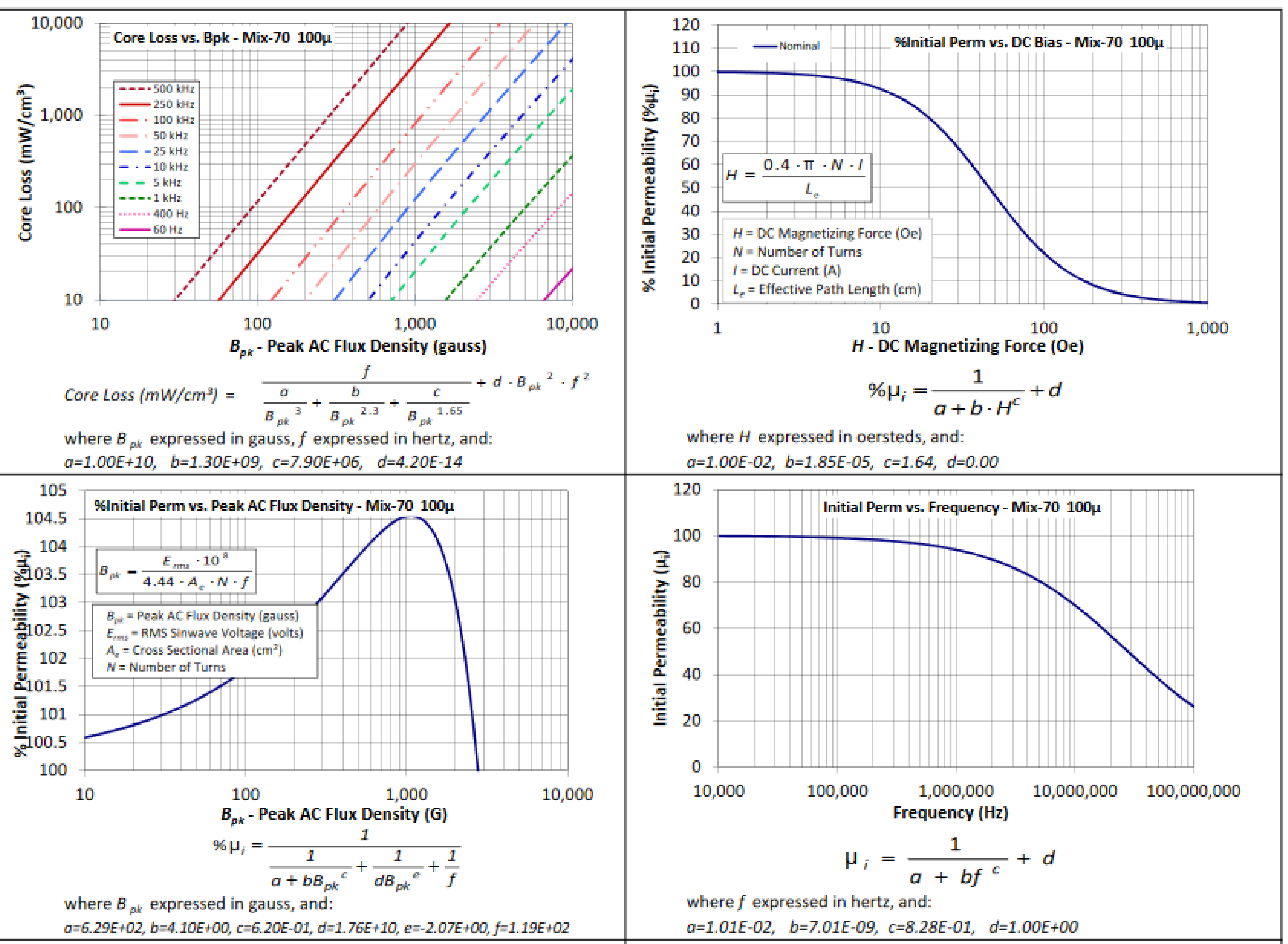

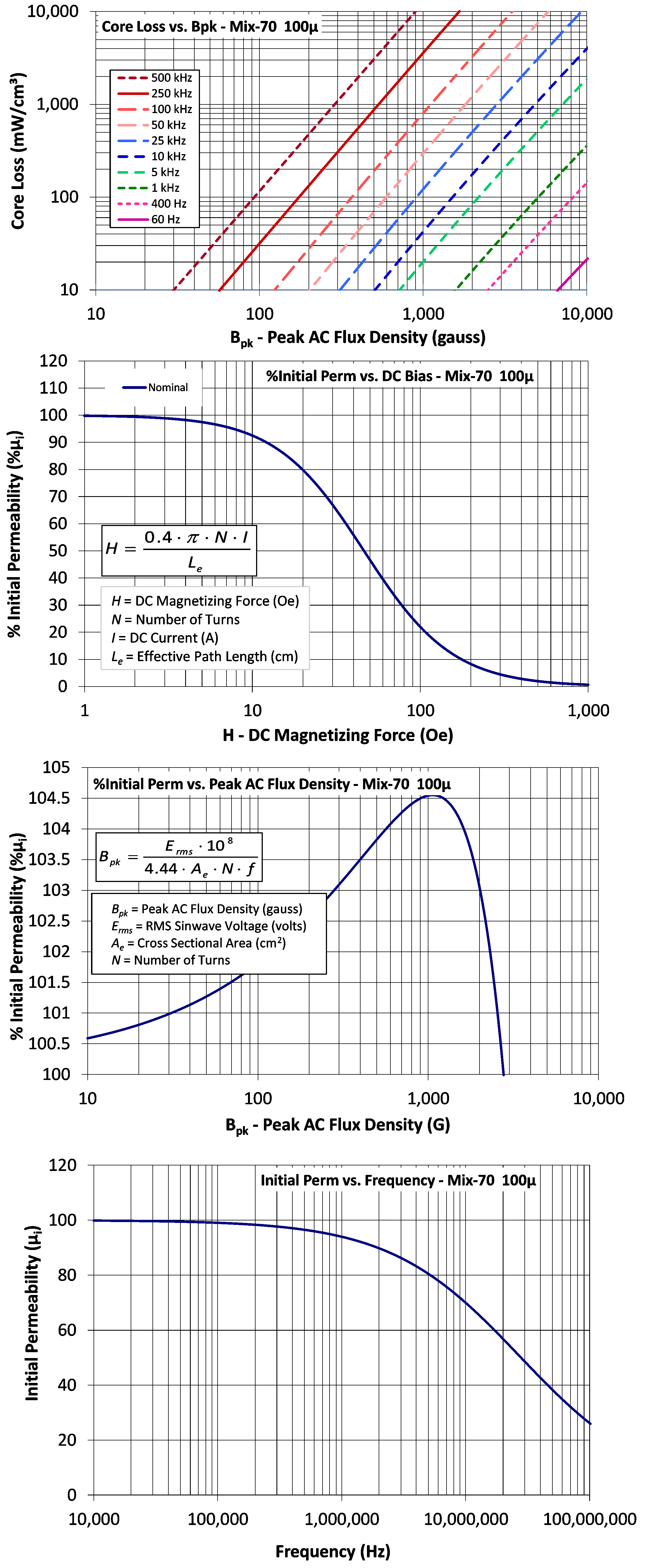

Q-Kurven Material 70
|
Material 70 | ||
|
µi (reference) |
100 |
|
|
Color |
Beige/Black | |
|
Density |
7.4 gm/cm3 | |
|
Bsat |
8.6 kG | |
|
Core Loss (100kHz, 140g) |
13 mW/cm³ (nom) 15 mW/cm³ (max) | |
|
%Perm at DC Bias (50 Oe) |
46.8% (nom) 39.4% (min) | |
|
Material 70 | ||
|
µi (reference) |
100 |
|
|
Color |
Beige/Black | |
|
Density |
7.4 gm/cm3 | |
|
Bsat |
8.6 kG | |
|
Core Loss (100kHz, 140g) |
13 mW/cm³ (nom) 15 mW/cm³ (max) | |
|
%Perm at DC Bias (50 Oe) |
46.8% (nom) 39.4% (min) | |
