Q-Kurven Material BN-43
|
Material BN 43 | ||
|
μi (reference) |
850 |
|
|
Anfangs-Permeablität |
850 | |
|

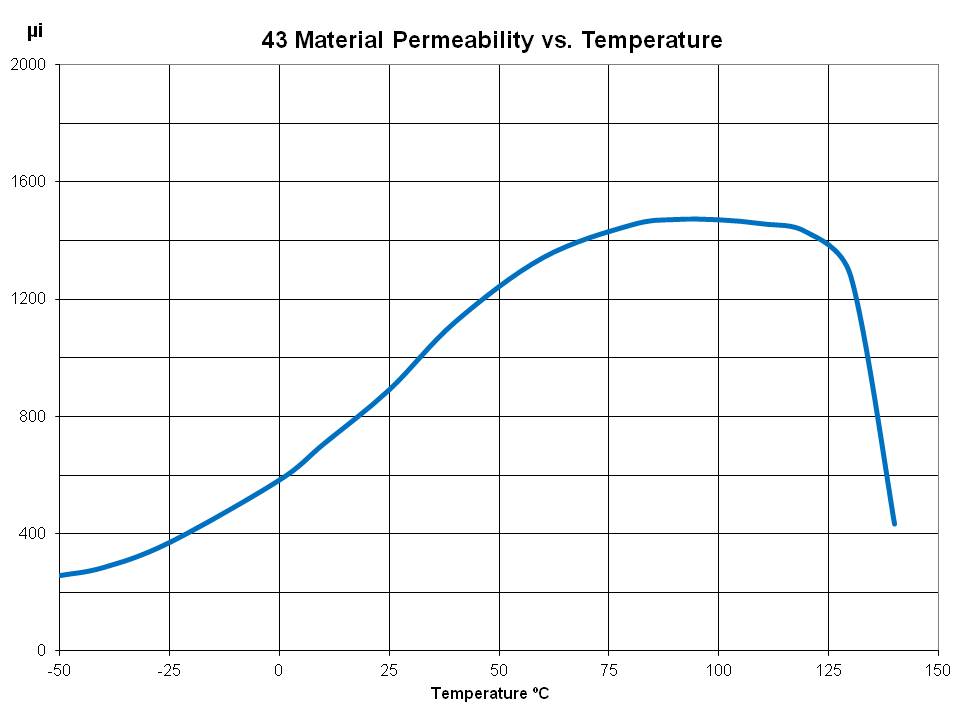

Max. Permeablität |
3000 | |
|

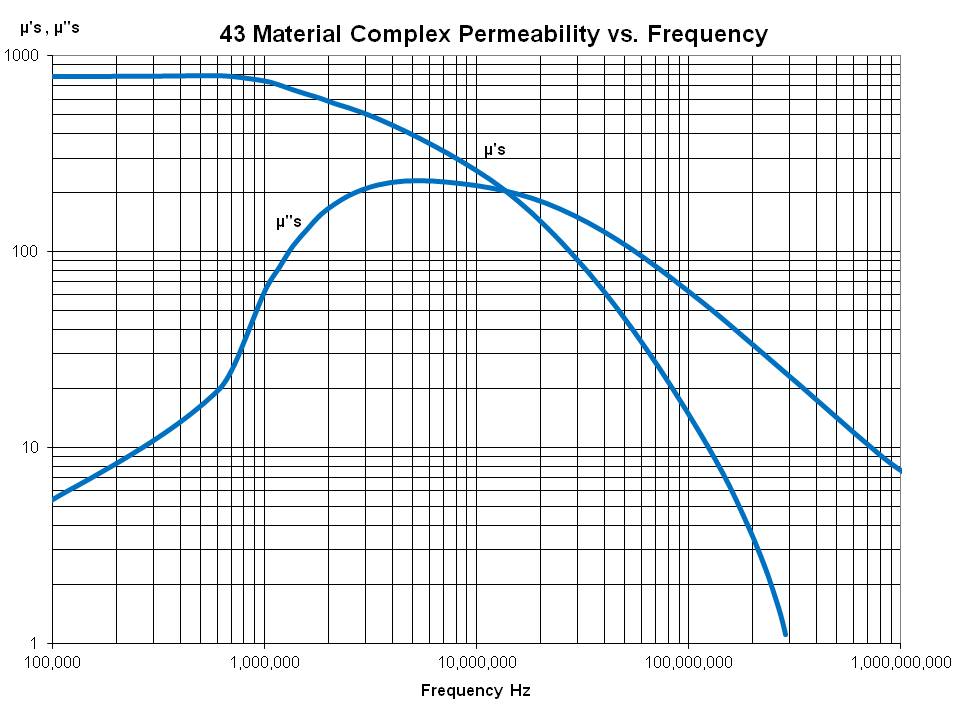

Frequenz Resonanz |
0.01-1 MHz | |
|
Frequenz Breitband |
1-50 MHz | |
|
Frequenz Drossel |
30-600 MHz | |
|

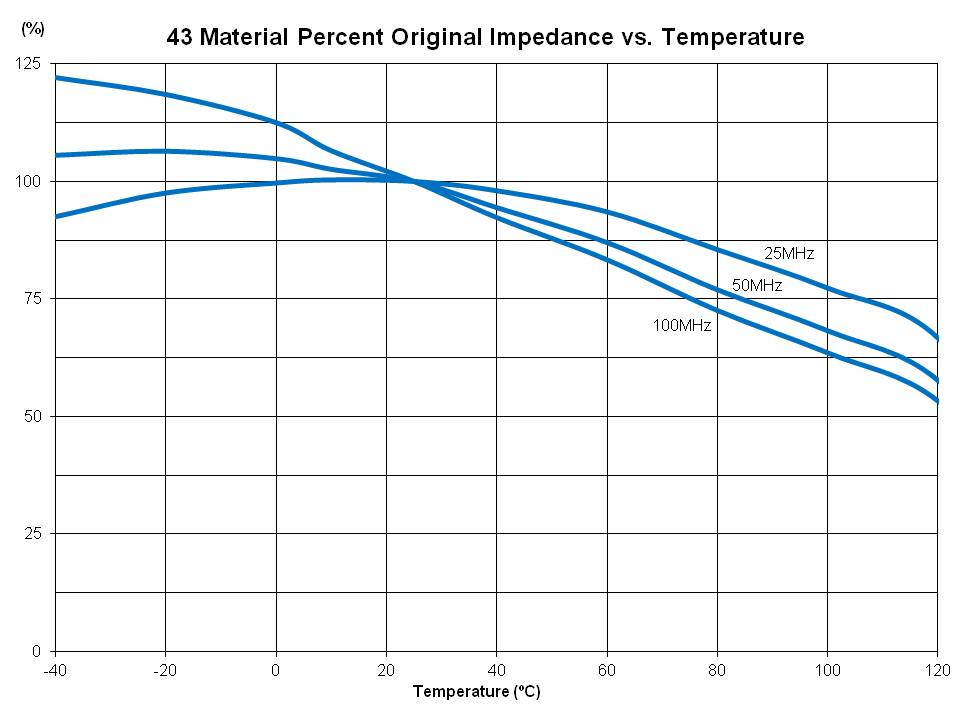

Kernmaterial |
Ni/Zn | |
|

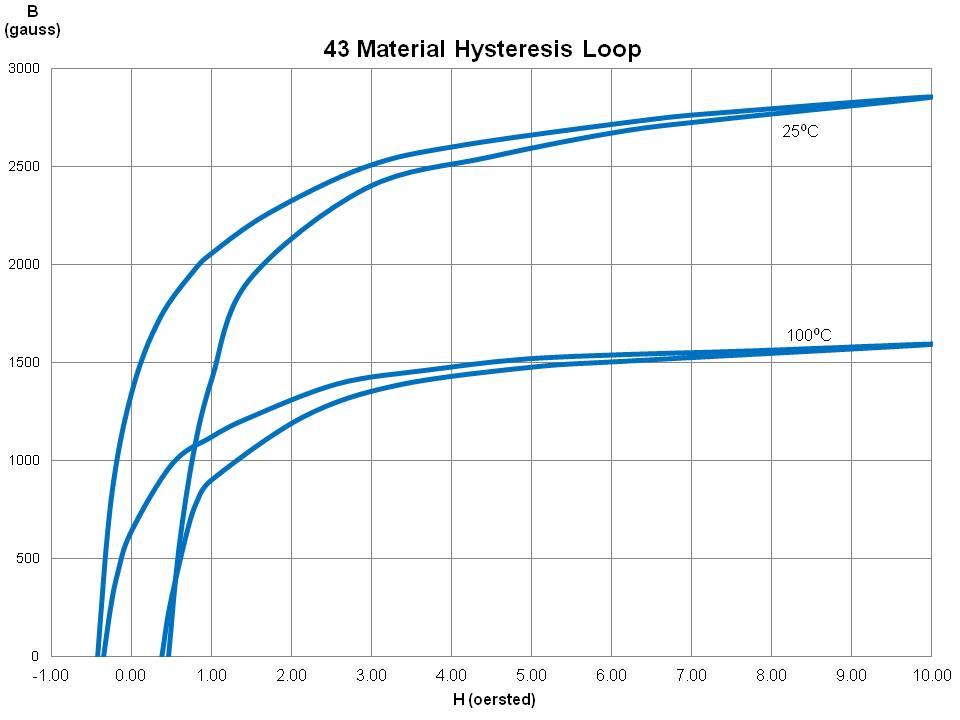

Ferrite Material Constants |
| |
|
Specific Heat |
0.25 cal/g/°C |
|
|
Thermal Conductivity |
3.5 - 4.5 mW/cm-°C |
|
|
Coefficient of Linear Expansion |
8 - 10x10-6/°C |
|
|
Tensile Strength |
4.9 kgf/mm2 |
|
|
Compressive Strength |
42 kgf/mm2 |
|
|
Young's Modulus |
15x103 kgf/mm2 |
|
|
Hardness (Knoop) |
650 |
|
|
Specific Gravity |
≈4.7 g/cm3 |
|
|
Die oben genannten Eigenschaften sind typisch für Amidon MnZn- und NiZn-Ferrite. The above quoted properties are typical for Amidon MnZn and NiZn ferrites. |
||
