AMIDON-DEUTSCHLAND

FT50-72

MATERIAL 72 (Permeabilität 2000)

Ein Mangan-Zink-Material mit großer Sättigungsflußdichte bei hohen Temperaturen. Niedrige Kernverluste im Bereich von 1 kHz bis 1 MHz. Ideal für Transformatoren und Breitbandübertrager bis 30 MHz sowie zur Nebenwellendämpfung zwischen 2 und 40 MHz.

72 Material Characteristics

Property

Item

Unit/

Symbol

Value

Max.

Permeabilität

Freq. MHz Reso-nanz

Freq. MHz

Breit-band

Freq.

MHz

Drossel

Initial Permeability@ B < 10 gauss

µ_i

2000

3500

0.2-10

10-200

200-1000

Flux Density @ Field Strength

Gauss
Oersted

5100

Mittlere Feld-

Linienlänge

2.95 cm

Oberfläche

0.129 cm³

Volumen

0.38 cm³

Residual Flux Density

Gauss

B_r

1800

Coercive Force

Oersted

H_c

0.25

Sättigungsflußdichte

10 Oe (Gauß)

2500

Vol.Widerstand Ω/cm

10⁸

Loss Factor @ Frequency

10 ^-6MHz

Tan δ/ µ_i

0.1

Remanenzflußdichte

10 Oe (Gauß)

1000

Σl/A(cm^-1)

22.9

Temperature Coefficient of Initial Permeability (20 -70°C)

%/°C

1.2

Density gm/cm³

≈4.7 g/cm³

Curie Temperature

°C

T_c

>200

Resistivity

Ohm-cm

1×10⁸

Electrical Specifications

Bestellnr.

Kern-Material

Item

Unit/Symbol

Condition

Value

A_L-Toleranz

FT50-72

Ferrit Toroid

A_L

nH/N2

@ 10 KHz

1180

±25%

MnZn

N/A

2.95

±10%

cm²

N/A

0.129

±10%

cm³

N/A

0.38

±10%

Initial Permeability

µ0

@ B < 10 gauss

2030

±25%

Temp. Coeff. Of initial

Permeability

% °C

20-70°C

1.2

Typ.

Coercive Force

oersted

0.25

Typ.

Residual Flux Density

Gauss, Br

N/A

1800

Typ.

Flux Density

Gauss, B

Initial (B), oersted

5100

Typ.

Gauss, H @

@ Field Strength (H), oersted

Typ.

Curie temperature

°C

> 200

Nom.

Resistivity

Ω cm. p

@ Field Strength

10⁸

Typ.

Loss Factor

1×10⁸Tan δ/ µ_i

Initial

Typ.

MHz

@ Frequency

0.1

Typ.

Chart Legend

Σl/A(cm^-1):

l_e :

A_e :

V_e :

A_L :

Core Constant

Effective Path Length

Effective Cross-Sectional

Effective Core Volume

Inductance Factor

20.9

2.95

0.129

0.38

1180

Dimensional Tolerances

Case

Toleranz

Weight

Gewicht

B (Outer Diameter)/mm

0.500

±0.010

12.7

±0.25

2.00 g

2.00 gramm

A (Inner Diameter)/mm

0.285

±0.008

7.15

±0.20

---

H (Height)/mm

0.188

±0.010

4.9

-0.25

---

Ferrite Material Constants

Specific Heat

0.25 cal/g/°C

Thermal Conductivity

3.5 - 4.5 mW/cm-°C

Coefficient of Linear Expansion

8 - 10x10^-6/°C

Tensile Strength

4.9 kgf/mm²

Compressive Strength

42 kgf/mm²

Young's Modulus

15x10³ kgf/mm²

Hardness (Knoop)

650

Specific Gravity

≈4.7 g/cm³

Die oben genannten Eigenschaften sind typisch für Amidon MnZn- und NiZn-Ferrite.

The above quoted properties are typical for Amidon MnZn and NiZn ferrites.

Ferrit-Ringkern für Breitbandtransformatoren

FT50-75

MATERIAL 75 (Permeabilität 5000)

Ein Mangan-Zink-Material, mit geringem Volumenwiderstand und niedrigen Kernverlusten zwischen 1 kHz und 1 MHz. Wird für Transformatoren niedriger Leistung, Breitbandübertrager und Puls-Transformatoren benutzt. Sehr geeignet auch zur Dämpfung unerwünschter HF im Bereich von 5 bis 20 MHz. Lieferbar in Ring- oder Perlenform

75 Material Characteristics

Property

Item

Unit/

Symbol

Value

Max.

Permeabilität

Freq. MHz Reso-nanz

Freq. MHz

Breit-band

Freq.

MHz

Drossel

Initial Permeability@ B < 10 gauss

µ_i

5000

9500

0.001-1

0.15-12

1.0-20

Flux Density @ Field Strength

Gauss
Oersted

4300

Mittlere Feld-

Linienlänge

Oberfläche

Volumen

Residual Flux Density

Gauss

B_r

1400

2.95 cm

0.129 cm³

0.38 cm³

Coercive Force

Oersted

H_c

0.16

Sättigungsflußdichte

10 Oe (Gauß)

2500

Vol.Widerstand Ω/cm

10²

Loss Factor @ Frequency

10 ^-6MHz

Tan δ/ µ_i

0.1

Remanenzflußdichte

10 Oe (Gauß)

1400

Σl/A(cm^-1)

22.9

Temperature Coefficient of Initial Permeability (20 -70°C)

%/°C

0.6

Density gm/cm³

≈4.7 g/cm³

Curie Temperature

°C

T_c

>140

Resistivity

Ohm-cm

300

10²

Electrical Specifications

Bestellnr.

Kern-Material

Item

Unit/Symbol

Condition

Value

A_L-Toleranz

FT50-75

Ferrit Toroid

A_L

nH/N²

@ 10 KHz

2725

±20%

MnZn

N/A

2.95

±10%

cm²

N/A

0.129

±10%

cm³

N/A

0.38

±10%

Initial Permeability

µ0

@ B < 10 gauss

5000

±25%

Temp. Coeff. Of initial

Permeability

% °C

20-70°C

0.6

Typ.

Coercive Force

oersted

0.16

Typ.

Residual Flux Density

Gauss, Br

N/A

1400

Typ.

Flux Density

Gauss, B

Initial (B), oersted

4300

Typ.

Gauss, H @

@ Field Strength (H), oersted

Typ.

Curie temperature

°C

> 140

Nom.

Resistivity

Ω cm. p

@ Field Strength

10²

Typ.

Loss Factor

1×10⁸Tan δ/ µ_i

Initial

Typ.

MHz

@ Frequency

0.1

Typ.

Chart Legend

Σl/A(cm^-1):

l_e :

A_e :

V_e :

A_L :

Core Constant

Effective Path Length

Effective Cross-Sectional

Effective Core Volume

Inductance Factor

20.9

2.95

0.129

0.38

2725

Dimensional Tolerances

Case

Toleranz

Weight

Gewicht

B (Outer Diameter)/mm

0.500

±0.010

12.7

±0.25

2.00 g

2.00 gramm

A (Inner Diameter)/mm

0.285

±0.008

7.15

±0.20

---

H (Height)/mm

0.188

±0.010

4.9

±0.25

---

Ferrite Material Constants

Specific Heat

0.25 cal/g/°C

Thermal Conductivity

3.5 - 4.5 mW/cm-°C

Coefficient of Linear Expansion

8 - 10x10^-6/°C

Tensile Strength

4.9 kgf/mm²

Compressive Strength

42 kgf/mm²

Young's Modulus

15x10³ kgf/mm²

Hardness (Knoop)

650

Specific Gravity

≈4.7 g/cm³

Die oben genannten Eigenschaften sind typisch für Amidon MnZn- und NiZn-Ferrite.

The above quoted properties are typical for Amidon MnZn and NiZn ferrites.

Ferrit-Ringkern für Breitbandtransformatoren

Spezifikationen für FT50-75 RF Toroids
Temperaturstabilität (ppm / ° C		= 6000
Farbcode		= mattes Schwarz
Anwendungsfrequenzbereich
Breitbandtransformatoren	1-50 MHz
Leistungstransformatoren	0.1 - 3 MHz
RFI-Unterdrückung	über 1 MHz

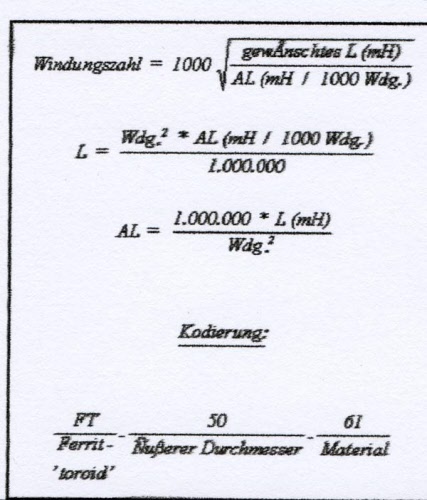

*L = 4200 ±20% uH = (A_LTurns²) / 1000**	Tatsächliche gemessene A_L unter Verwendung von 10 Windungen # 28 Draht

FT50-77

MATERIAL 77 (Permeabilität 2050)

77 Material Characteristics

Property

Item

Unit/

Symbol

Value

Max.

Permeabilität

Freq. MHz Reso-nanz

Freq. MHz

Breit-band

Freq.

MHz

Drossel

Initial Permeability@ B < 10 gauss

µ_i

2050

3500

0.2-10

10-200

200-1000

Flux Density @ Field Strength

Gauss
Oersted

5100

Mittlere Feld-

Linienlänge

2.95 cm

Oberfläche

0.129 cm³

Volumen

0.38 cm³

Residual Flux Density

Gauss

B_r

1800

Coercive Force

Oersted

H_c

0.25

Sättigungsflußdichte

10 Oe (Gauß)

2500

Vol.Widerstand Ω/cm

10⁸

Loss Factor @ Frequency

10 ^-6MHz

Tan δ/ µ_i

0.1

Remanenzflußdichte

10 Oe (Gauß)

1000

Σl/A(cm^-1)

22.9

Temperature Coefficient of Initial Permeability (20 -70°C)

%/°C

1.2

Density gm/cm³

≈4.7 g/cm³

Curie Temperature

°C

T_c

>200

Resistivity

Ohm-cm

1×10⁸

Electrical Specifications

Bestellnr.

Kern-Material

Item

Unit/Symbol

Condition

Value

A_L-Toleranz

FT50-77

Ferrit Toroid

A_L

nH/N2

@ 10 KHz

1180

±25%

MnZn

N/A

2.95

±10%

cm²

N/A

0.129

±10%

cm³

N/A

0.38

±10%

Initial Permeability

µ0

@ B < 10 gauss

2050

±25%

Temp. Coeff. Of initial

Permeability

% °C

20-70°C

1.2

Typ.

Coercive Force

oersted

0.25

Typ.

Residual Flux Density

Gauss, Br

N/A

1800

Typ.

Flux Density

Gauss, B

Initial (B), oersted

5100

Typ.

Gauss, H @

@ Field Strength (H), oersted

Typ.

Curie temperature

°C

> 200

Nom.

Resistivity

Ω cm. p

@ Field Strength

10⁸

Typ.

Loss Factor

1×10⁸Tan δ/ µ_i

Initial

Typ.

MHz

@ Frequency

0.1

Typ.

Chart Legend

Σl/A(cm^-1):

l_e :

A_e :

V_e :

A_L :

Core Constant

Effective Path Length

Effective Cross-Sectional

Effective Core Volume

Inductance Factor

20.9

2.95

0.129

0.38

1180

Dimensional Tolerances

Case

Toleranz

Weight

Gewicht

B (Outer Diameter)/mm

0.500

±0.010

12.7

±0.25

2.00 g

2.00 gramm

A (Inner Diameter)/mm

0.285

±0.008

7.15

±0.20

---

H (Height)/mm

0.188

±0.010

4.9

-0.25

---

Ferrite Material Constants

Specific Heat

0.25 cal/g/°C

Thermal Conductivity

3.5 - 4.5 mW/cm-°C

Coefficient of Linear Expansion

8 - 10x10^-6/°C

Tensile Strength

4.9 kgf/mm²

Compressive Strength

42 kgf/mm²

Young's Modulus

15x10³ kgf/mm²

Hardness (Knoop)

650

Specific Gravity

≈4.7 g/cm³

Die oben genannten Eigenschaften sind typisch für Amidon MnZn- und NiZn-Ferrite.

The above quoted properties are typical for Amidon MnZn and NiZn ferrites.

Ferrit-Ringkern für Breitbandtransformatoren

FT50-82

MATERIAL 82 (Permeabilität 2050)

82 Material Characteristics

Property

Item

Unit/

Symbol

Value

Max.

Permeabilität

Freq. MHz Reso-nanz

Freq. MHz

Breit-band

Freq.

MHz

Drossel

Initial Permeability@ B < 10 gauss

µ_i

2050

3500

0.2-10

10-200

200-1000

Flux Density @ Field Strength

Gauss
Oersted

5100

Mittlere Feld-

Linienlänge

2.95 cm

Oberfläche

0.129 cm³

Volumen

0.38 cm³

Residual Flux Density

Gauss

B_r

1800

Coercive Force

Oersted

H_c

0.25

Sättigungsflußdichte

10 Oe (Gauß)

2500

Vol.Widerstand Ω/cm

10⁸

Loss Factor @ Frequency

10 ^-6MHz

Tan δ/ µ_i

0.1

Remanenzflußdichte

10 Oe (Gauß)

1000

Σl/A(cm^-1)

22.9

Temperature Coefficient of Initial Permeability (20 -70°C)

%/°C

1.2

Density gm/cm³

≈4.7 g/cm³

Curie Temperature

°C

T_c

>200

Resistivity

Ohm-cm

1×10⁸

Electrical Specifications

Bestellnr.

Kern-Material

Item

Unit/Symbol

Condition

Value

A_L-Toleranz

FT50-82

Ferrit Toroid

A_L

nH/N2

@ 10 KHz

1180

±25%

MnZn

N/A

2.95

±10%

cm²

N/A

0.129

±10%

cm³

N/A

0.38

±10%

Initial Permeability

µ0

@ B < 10 gauss

2050

±25%

Temp. Coeff. Of initial

Permeability

% °C

20-70°C

1.2

Typ.

Coercive Force

oersted

0.25

Typ.

Residual Flux Density

Gauss, Br

N/A

1800

Typ.

Flux Density

Gauss, B

Initial (B), oersted

5100

Typ.

Gauss, H @

@ Field Strength (H), oersted

Typ.

Curie temperature

°C

> 200

Nom.

Resistivity

Ω cm. p

@ Field Strength

10⁸

Typ.

Loss Factor

1×10⁸Tan δ/ µ_i

Initial

Typ.

MHz

@ Frequency

0.1

Typ.

Chart Legend

Σl/A(cm^-1):

l_e :

A_e :

V_e :

A_L :

Core Constant

Effective Path Length

Effective Cross-Sectional

Effective Core Volume

Inductance Factor

20.9

2.95

0.129

0.38

1180

Dimensional Tolerances

Case

Toleranz

Weight

Gewicht

B (Outer Diameter)/mm

0.500

±0.010

12.7

±0.25

2.00 g

2.00 gramm

A (Inner Diameter)/mm

0.285

±0.008

7.15

±0.20

---

H (Height)/mm

0.188

±0.010

4.9

-0.25

---

Ferrite Material Constants

Specific Heat

0.25 cal/g/°C

Thermal Conductivity

3.5 - 4.5 mW/cm-°C

Coefficient of Linear Expansion

8 - 10x10^-6/°C

Tensile Strength

4.9 kgf/mm²

Compressive Strength

42 kgf/mm²

Young's Modulus

15x10³ kgf/mm²

Hardness (Knoop)

650

Specific Gravity

≈4.7 g/cm³

Die oben genannten Eigenschaften sind typisch für Amidon MnZn- und NiZn-Ferrite.

The above quoted properties are typical for Amidon MnZn and NiZn ferrites.

Ferrit-Ringkern für Breitbandtransformatoren

FT50-85

MATERIAL 85 (Permeabilität 5000)

85 Material Characteristics

Property

Item

Unit/

Symbol

Value

Max.

Permeabilität

Freq. MHz Reso-nanz

Freq. MHz

Breit-band

Freq.

MHz

Drossel

Initial Permeability@ B < 10 gauss

µ_i

5000

9500

0.001-1

0.15-12

1.0-20

Flux Density @ Field Strength

Gauss
Oersted

4300

Mittlere Feld-

Linienlänge

Oberfläche

Volumen

Residual Flux Density

Gauss

B_r

1400

2.95 cm

0.129 cm³

0.38 cm³

Coercive Force

Oersted

H_c

0.16

Sättigungsflußdichte

10 Oe (Gauß)

2500

Vol.Widerstand Ω/cm

10²

Loss Factor @ Frequency

10 ^-6MHz

Tan δ/ µ_i

0.1

Remanenzflußdichte

10 Oe (Gauß)

1400

Σl/A(cm^-1)

22.9

Temperature Coefficient of Initial Permeability (20 -70°C)

%/°C

0.6

Density gm/cm³

≈4.7 g/cm³

Curie Temperature

°C

T_c

>140

Resistivity

Ohm-cm

300

10²

Electrical Specifications

Bestellnr.

Kern-Material

Item

Unit/Symbol

Condition

Value

A_L-Toleranz

FT50-85

Ferrit Toroid

A_L

nH/N²

@ 10 KHz

2725

±20%

MnZn

N/A

2.95

±10%

cm²

N/A

0.129

±10%

cm³

N/A

0.38

±10%

Initial Permeability

µ0

@ B < 10 gauss

5000

±25%

Temp. Coeff. Of initial

Permeability

% °C

20-70°C

0.6

Typ.

Coercive Force

oersted

0.16

Typ.

Residual Flux Density

Gauss, Br

N/A

1400

Typ.

Flux Density

Gauss, B

Initial (B), oersted

4300

Typ.

Gauss, H @

@ Field Strength (H), oersted

Typ.

Curie temperature

°C

> 140

Nom.

Resistivity

Ω cm. p

@ Field Strength

10²

Typ.

Loss Factor

1×10⁸Tan δ/ µ_i

Initial

Typ.

MHz

@ Frequency

0.1

Typ.

Chart Legend

Σl/A(cm^-1):

l_e :

A_e :

V_e :

A_L :

Core Constant

Effective Path Length

Effective Cross-Sectional

Effective Core Volume

Inductance Factor

20.9

2.95

0.129

0.38

2725

Dimensional Tolerances

Case

Toleranz

Weight

Gewicht

B (Outer Diameter)/mm

0.500

±0.010

12.7

±0.25

2.00 g

2.00 gramm

A (Inner Diameter)/mm

0.285

±0.008

7.15

±0.20

---

H (Height)/mm

0.188

±0.010

4.9

±0.25

---

Ferrite Material Constants

Specific Heat

0.25 cal/g/°C

Thermal Conductivity

3.5 - 4.5 mW/cm-°C

Coefficient of Linear Expansion

8 - 10x10^-6/°C

Tensile Strength

4.9 kgf/mm²

Compressive Strength

42 kgf/mm²

Young's Modulus

15x10³ kgf/mm²

Hardness (Knoop)

650

Specific Gravity

≈4.7 g/cm³

Die oben genannten Eigenschaften sind typisch für Amidon MnZn- und NiZn-Ferrite.

The above quoted properties are typical for Amidon MnZn and NiZn ferrites.

Ferrit-Ringkern für Breitbandtransformatoren

Spezifikationen für FT50-85 RF Toroids
Temperaturstabilität (ppm / ° C		= 6000
Farbcode		= mattes Schwarz
Anwendungsfrequenzbereich
Breitbandtransformatoren	1-50 MHz
Leistungstransformatoren	0.1 - 3 MHz
RFI-Unterdrückung	über 1 MHz
*L = 4200 ±20% uH = (A_LTurns²) / 1000**	Tatsächliche gemessene A_L unter Verwendung von 10 Windungen # 28 Draht

FT50-86

MATERIAL 86 (Permeabilität 20)

Ein Nickel-Zink-Material mit hohem Volumenwiderstand und ausgezeichneter Temperaturstabilität. Hohe Güte zwischen 80 und 180 MHz. Ist für HF-Spulen, Antennen und Breitbandverstärker ebensogut geeignet wie für Linearendstufen. Lieferbar in Ringform.

Unser NiZn-Ferrit mit der höchsten Frequenz ist für Breitbandtransformatoren, Antennen und Hi-Q-Induktivitätsanwendungen bis 150 MHz vorgesehen.

Starke Magnetfelder oder übermäßige mechanische Beanspruchungen können zu irreversiblen Veränderungen der Durchlässigkeit oder der Verluste führen.

Our highest frequency NiZn ferrite intended for broadband transformers, antennas and Hi Q inductor applications up to 150 MHz.

Strong magnetic fields or excessive mechanical stresses may result in irreversible changes in permeability or losses.

Chart Legend
Σl/A : Core Constant, l_e : Effective Path Length, A_e : Effective Cross-Sectional Area, V_e : Effective Core Volume
A_L : Inductance Factor

86 Material Characteristics

Property

Item

Unit/

Symbol

Value

Max.

Permeabilität

Freq. MHz Reso-nanz

Freq. MHz

Breit-band

Freq.

MHz

Drossel

Initial Permeability@ B < 10 gauss

µ_i

80-180

200-1000

1000-5000

Flux Density @ Field Strength

Gauss
Oersted

2700

Mittlere Feld-

Linienlänge

2.95 cm

Oberfläche

0.129 cm³

Volumen

0.38 cm³

Residual Flux Density

Gauss

B_r

900

Coercive Force

Oersted

H_c

6.5

Sättigungsflußdichte

10 Oe (Gauß)

2700

Vol.Widerstand Ω/cm

10⁷

Loss Factor @ Frequency

10 ^-6MHz

Tan δ/ µ_i

400

100

Remanenzflußdichte

10 Oe (Gauß)

900

Σl/A(cm^-1)

22.9

Temperature Coefficient of Initial Permeability (20 -70°C)

%/°C

0.10

Density gm/cm³

≈4.7 g/cm³

Curie Temperature

°C

T_c

>500

Resistivity

Ohm-cm

1×10⁷

Electrical Specifications

Bestellnr.

Kern-Material

Item

Unit/Symbol

Condition

Value

A_L-Toleranz

FT50-86

Ferrit Toroid

A_L

nH/N2

@ 10 KHz

7.2 Min

Typ.

NiZn

N/A

2.95

±10%

cm²

N/A

0.129

±10%

cm³

N/A

0.38

±10%

Initial Permeability

µ0

@ B < 10 gauss

Typ.

Temp. Coeff. Of initial

Permeability

% °C

20-70°C

0.10

Typ.

Coercive Force

oersted

6.5

Typ.

Residual Flux Density

Gauss, Br

N/A

900

Typ.

Flux Density

Gauss, B

Initial (B), oersted

2700

Typ.

Gauss, H @

@ Field Strength (H), oersted

Typ.

Curie temperature

°C

> 500

Nom.

Resistivity

Ω cm. p

@ Field Strength

10⁷

Typ.

Loss Factor

1×10⁷

Tan δ/ µ_i

Initial

500

Typ.

MHz

@ Frequency

100

Typ.

Chart Legend

Σl/A(cm^-1):

l_e :

A_e :

V_e :

A_L :

Core Constant

Effective Path Length

Effective Cross-Sectional

Effective Core Volume

Inductance Factor

20.9

2.95

0.129

0.38

6.6 min.

Dimensional Tolerances

Case

Toleranz

Weight

Gewicht

B (Outer Diameter)/mm

0.500

±0.010

12.7

±0.25

2.40 g

2.40 gramm

A (Inner Diameter)/mm

0.285

±0.008

7.15

±0.20

---

H (Height)/mm

0.188

±0.010

4.9

-0.25

---

Ferrite Material Constants

Specific Heat

0.25 cal/g/°C

Thermal Conductivity

3.5 - 4.5 mW/cm-°C

Coefficient of Linear Expansion

8 - 10x10^-6/°C

Tensile Strength

4.9 kgf/mm²

Compressive Strength

42 kgf/mm²

Young's Modulus

15x10³ kgf/mm²

Hardness (Knoop)

650

Specific Gravity

≈4.7 g/cm³

Die oben genannten Eigenschaften sind typisch für Amidon MnZn- und NiZn-Ferrite.

The above quoted properties are typical for Amidon MnZn and NiZn ferrites.

Ferritring für Breitbandtransformatoren

FT50-93

MATERIAL 93 (Permeabilität 3000)

Große Sättigungsflussdichte bei hoher Temperatur. Für Transformatoren und Filter zwischen 0,5 und 50 MHz.

93-Material ist ein Allzweck-Leistungstransformator, Induktor und Filtermaterial für mittlere Frequenzen. Etwas länger in Perm als P oder R-Material. Entwickelt für geringste Verluste bei 60 ° C.

Electrical Specifications FT50-93

Item

Unit/Symbol

Condition

Value

Tol.

Freq. MHz Resonanz

Freq. MHz

Breit-band

Freq.

MHz Drossel

A_L-

mH/1000

@ 5 gauss in a de-gaussed state

1630

±20%

0.001-1

0.5-30

1.0-20

l_e

N/A

2.95

±10%

Saturation Flux Density (4,700 G at 15 Oe, 25°C)

470 mT, 11.9 A•T/cm

Effective Path Length

A_e

cm²

N/A

0.126

±10%

Curie Temperature

210°C

Effective Cross-Sectional

V_e

cm³

N/A

0.373

±10%

Maximum Usable Frequency (50% roll-off)

≤1.5 MHz

Effective Core Volume

Density

g/cm³

N/A

4.8

Typ.

Remanence (1,500 G, 25°C)

150 mT

Permeability

µ_i

Typical

3000

±20%

Coercivity

Oe, A/m

Typical

0.2, 16

Typ.

Flux Density

Gauss, B

Typical

4900

Typ.

Resistivity

5 Ω-m

Gauss, H

@ 1194 A/m, 15 oe mT

490

Typ.

Curie temperature

°C

T_c

> 250

Typ.

Density

4.8 g/cm³

Resistivity

Ω cm p

Typical

Typ.

Relative Loss Factor

10 ^-6

Tan δ/ µ_i

˂8

Typ.

kHz

@ Frequency

100

Typ.

Max. Usable freq.

MHz

(50% roll-off)

˂1.5

Typ.

Remanence

G, mT

Typical

1200, 120

Typ.

Disaccommodation Factor

10 ^-6

Typical

N/A

Typ.

Condition

25°C

@60°C

@100°C

@120°C

25 kHz

200 mT

160

2000 G

240

N/A

100 kHz

100

100 mT

180

1000 G

225

N/A

III

500 kHz

N/A

50 mT

N/A

500 G

N/A

700 kHz

N/A

50 mT

N/A

500 G

N/A

Case

Toleranz

Weight

Gewicht

B (Outer Diameter)/mm

0.500

0.510 Max

12.7

12.96 Max

1.90 g

A (Inner Diameter)/mm

0.281

0.271 Min

7.14

6.88 Min

---

H (Height)/mm

0.188

0.193 Max

4.78

4.91 Max

---

FT50-98

Preis- und Lieferzeit auf Anfrage

MATERIAL 98 (Permeabilität 10.000)

98-Material ist ein Material mit hoher Permeabilität, das für EMI / RMI-Unterdrückung, Gleichtaktdrosseln, Impuls- und Breitbandtransformatoren verwendet wird.

Electrical Specifications FT50-98

Item

Unit/Symbol

Condition

Value

Tol.

Freq. MHz Resonanz

Freq. MHz

Breit-band

Freq.

MHz Drossel

A_L-

mH/1000

@ 5 gauss in a de-gaussed state

5430

±30%

1-250 kHz

2 kHz -

2 MHz

100 kHz-

1 MHz

l_e

N/A

2.95

(29.5)

±10%

Saturation Flux Density (4,700 G at 15 Oe, 25°C)

470 mT, 11.9 A•T/cm

Effective Path Length

A_e

cm²

N/A

0.126

(12.9)

±10%

Curie Temperature

210°C

Effective Cross-Sectional

V_e

cm³

N/A

0.373

(381)

±10%

Maximum Usable Frequency (50% roll-off)

≤1.5 MHz

Effective Core Volume

Density

g/cm³

N/A

4.8

Typ.

Remanence (1,500 G, 25°C)

150 mT

Permeability

µ_i

Typical

10.000

±20%

Coercivity

Oe, A/m

Typical

0.04, 3

Typ.

Flux Density

Gauss, B

Typical

4300

Typ.

Resistivity

5 Ω-m

Gauss, H

@ 1194 A/m, 15 oe mT

430

Typ.

Curie temperature

°C

T_c

> 125

Typ.

Density

4.8 g/cm³

WaAc

0.05

Resistivity

Ω cm p

Typical

0.15

Typ.

Relative Loss Factor

10 ^{-6

}

Tan δ/ µ_i

˂7

Typ.

kHz

@ Frequency

Typ.

Max. Usable freq.

MHz

(50% roll-off)

˂0.25

Typ.

Remanence

G, mT

Typical

800, 80

Typ.

Disaccommodation Factor

10 ^-6

Typical

˂3

Typ.

Condition

25°C

@60°C

@100°C

@120°C

25 kHz

N/A

200 mT

N/A

2000 G

N/A

100 kHz

N/A

100 mT

N/A

1000 G

N/A

III

500 kHz

N/A

50 mT

N/A

500 G

N/A

700 kHz

N/A

50 mT

N/A

500 G

N/A

Case

Toleranz

Weight

Gewicht

B (Outer Diameter)/mm

0.500

0.510 Max

12.7

12.96 Max

1.90 g

A (Inner Diameter)/mm

0.281

0.271 Min

7.14

6.88 Min

---

H (Height)/mm

0.188

0.193 Max

4.78

4.91 Max

---

INDUCTANCE

A_L-value (nH/T²)

Test conditions

5430 ± 30%

10 kHz

0.5 mT (For N = 5, use 0.139 mA), 25°C

ELECTRICAL LOSSES

Tan δ/ µ_i

Production lot limit Average

Test conditions

≤3.5·10 ^-6

≤3·10 ^-6

10 kHz

0.5 mT, 25ºC

≤55·10 ^-6

≤45·10 ^-6

100 kHz

FT50-W76/98

Preis- und Lieferzeit auf Anfrage

MATERIAL 76/98 (Permeabilität 10.000)

W-Material ist ein Material mit hoher Permeabilität, das für EMI / RMI-Unterdrückung, Gleichtaktdrosseln, Impuls- und Breitbandtransformatoren verwendet wird.

Electrical Specifications FT50-W76/98

Item

Unit/Symbol

Condition

Value

Tol.

Freq. MHz Resonanz

Freq. MHz

Breit-band

Freq.

MHz Drossel

A_L-

mH/1000

@ 5 gauss in a de-gaussed state

5430

±30%

1-250 kHz

2 kHz -

2 MHz

100 kHz-

1 MHz

l_e

N/A

2.95

(29.5)

±10%

Saturation Flux Density (4,700 G at 15 Oe, 25°C)

470 mT, 11.9 A•T/cm

Effective Path Length

A_e

cm²

N/A

0.126

(12.9)

±10%

Curie Temperature

210°C

Effective Cross-Sectional

V_e

cm³

N/A

0.373

(381)

±10%

Maximum Usable Frequency (50% roll-off)

≤1.5 MHz

Effective Core Volume

Density

g/cm³

N/A

4.8

Typ.

Remanence (1,500 G, 25°C)

150 mT

Permeability

µ_i

Typical

10.000

±20%

Coercivity

Oe, A/m

Typical

0.04, 3

Typ.

Flux Density

Gauss, B

Typical

4300

Typ.

Resistivity

5 Ω-m

Gauss, H

@ 1194 A/m, 15 oe mT

430

Typ.

Curie temperature

°C

T_c

> 125

Typ.

Density

4.8 g/cm³

WaAc

0.05

Resistivity

Ω cm p

Typical

0.15

Typ.

Relative Loss Factor

10 ^{-6

}

Tan δ/ µ_i

˂7

Typ.

kHz

@ Frequency

Typ.

Max. Usable freq.

MHz

(50% roll-off)

˂0.25

Typ.

Remanence

G, mT

Typical

800, 80

Typ.

Disaccommodation Factor

10 ^-6

Typical

˂3

Typ.

Condition

25°C

@60°C

@100°C

@120°C

25 kHz

N/A

200 mT

N/A

2000 G

N/A

100 kHz

N/A

100 mT

N/A

1000 G

N/A

III

500 kHz

N/A

50 mT

N/A

500 G

N/A

700 kHz

N/A

50 mT

N/A

500 G

N/A

Case

Toleranz

Weight

Gewicht

B (Outer Diameter)/mm

0.500

0.510 Max

12.7

12.96 Max

1.90 g

A (Inner Diameter)/mm

0.281

0.271 Min

7.14

6.88 Min

---

H (Height)/mm

0.188

0.193 Max

4.78

4.91 Max

---

INDUCTANCE

A_L-value (nH/T²)

Test conditions

5430 ± 30%

10 kHz

0.5 mT (For N = 5, use 0.139 mA), 25°C

ELECTRICAL LOSSES

Tan δ/ µ_i

Production lot limit Average

Test conditions

≤3.5·10 ^-6

≤3·10 ^-6

10 kHz

0.5 mT, 25ºC

≤55·10 ^-6

≤45·10 ^-6

100 kHz

FT50-F

Preis- und Lieferzeit auf Anfrage

MATERIAL F (Permeabilität 3000)

Große Sättigungsflussdichte bei hoher Temperatur. Für Transformatoren und Filter zwischen 0,5 und 50 MHz.

Electrical Specifications FT50-F

Item

Unit/Symbol

Condition

Value

Tol.

Freq. MHz Resonanz

Freq. MHz

Breit-band

Freq.

MHz Drossel

A_L-

mH/1000

@ 5 gauss in a de-gaussed state

1630

±20%

0.001-1

0.5-30

1.0-20

l_e

N/A

2.95

±10%

Saturation Flux Density (4,700 G at 15 Oe, 25°C)

470 mT, 11.9 A•T/cm

Effective Path Length

A_e

cm²

N/A

0.126

±10%

Curie Temperature

210°C

Effective Cross-Sectional

V_e

cm³

N/A

0.373

±10%

Maximum Usable Frequency (50% roll-off)

≤1.5 MHz

Effective Core Volume

Density

g/cm³

N/A

4.8

Typ.

Remanence (1,500 G, 25°C)

150 mT

Permeability

µ_i

Typical

3000

±20%

Coercivity

Oe, A/m

Typical

0.2, 16

Typ.

Flux Density

Gauss, B

Typical

4900

Typ.

Resistivity

5 Ω-m

Gauss, H

@ 1194 A/m, 15 oe mT

490

Typ.

Curie temperature

°C

T_c

> 250

Typ.

Density

4.8 g/cm³

Resistivity

Ω cm p

Typical

Typ.

Relative Loss Factor

10 ^-6

Tan δ/ µ_i

˂8

Typ.

kHz

@ Frequency

100

Typ.

Max. Usable freq.

MHz

(50% roll-off)

˂1.5

Typ.

Remanence

G, mT

Typical

1200, 120

Typ.

Disaccommodation Factor

10 ^-6

Typical

N/A

Typ.

Condition

25°C

@60°C

@100°C

@120°C

25 kHz

200 mT

160

2000 G

240

N/A

100 kHz

100

100 mT

180

1000 G

225

N/A

III

500 kHz

N/A

50 mT

N/A

500 G

N/A

700 kHz

N/A

50 mT

N/A

500 G

N/A

Case

Toleranz

Weight

Gewicht

B (Outer Diameter)/mm

0.500

0.510 Max

12.7

12.96 Max

1.90 g

A (Inner Diameter)/mm

0.281

0.271 Min

7.14

6.88 Min

---

H (Height)/mm

0.188

0.193 Max

4.78

4.91 Max

---

FT50-J

MATERIAL J (Permeabilität 5000)

J Material Characteristics

Property

Item

Unit/

Symbol

Value

Max.

Permeabilität

Freq. MHz Reso-nanz

Freq. MHz

Breit-band

Freq.

MHz

Drossel

Initial Permeability@ B < 10 gauss

µ_i

5000

9500

0.001-1

0.15-12

1.0-20

Flux Density @ Field Strength

Gauss
Oersted

4300

Mittlere Feld-

Linienlänge

Oberfläche

Volumen

Residual Flux Density

Gauss

B_r

1400

2.95 cm

0.129 cm³

0.38 cm³

Coercive Force

Oersted

H_c

0.16

Sättigungsflußdichte

10 Oe (Gauß)

2500

Vol.Widerstand Ω/cm

10²

Loss Factor @ Frequency

10 ^-6MHz

Tan δ/ µ_i

0.1

Remanenzflußdichte

10 Oe (Gauß)

1400

Σl/A(cm^-1)

22.9

tan δ/ μi

≤12·10^-6

Test conditions

100 kHz, 0.5 mT, 25°C

Temperature Coefficient of Initial Permeability (20 -70°C)

%/°C

0.6

Density gm/cm³

≈4.7 g/cm³

Curie Temperature

°C

T_c

>140

Resistivity

Ohm-cm

300

1×10^²

Electrical Specifications

Bestellnr.

Kern-Material

Item

Unit/Symbol

Condition

Value

(nH/T²)

A_L-Toleranz

FT50-J

Ferrit Toroid

A_L

nH/N²

@ 10 KHz

2725

10 kHz

±20%

MnZn

≥0.9 x A_L

@ 10 kHz

Test conditions: 0.5 mT (For N = 1, use 1.4 mA), 25°C

N/A

2.95

±10%

cm²

N/A

0.129

±10%

cm³

N/A

0.38

±10%

WaAc

N/A

0.05

Initial Permeability

µ0

@ B < 10 gauss

5000

±25%

Temp. Coeff. Of initial

Permeability

% °C

20-70°C

0.6

Typ.

Coercive Force

oersted

0.16

Typ.

Residual Flux Density

Gauss, Br

N/A

1400

Typ.

Flux Density

Gauss, B

Initial (B), oersted

4300

Typ.

Gauss, H @

@ Field Strength (H), oersted

Typ.

Curie temperature

°C

> 140

Nom.

Resistivity

Ω cm. p

@ Field Strength

10²

Typ.

Loss Factor

1×10⁸Tan δ/ µ_i

Initial

Typ.

MHz

@ Frequency

0.1

Typ.

Chart Legend

Σl/A(cm^-1):

l_e :

A_e :

V_e :

A_L :

Core Constant

Effective Path Length

Effective Cross-Sectional

Effective Core Volume

Inductance Factor

20.9

2.95

0.129

0.38

2725

Dimensional Tolerances

Case

Toleranz

Weight

Gewicht

B (Outer Diameter)/mm

0.500

±0.010

12.7

±0.25

2.00 g

2.00 gramm

A (Inner Diameter)/mm

0.285

±0.008

7.15

±0.20

---

H (Height)/mm

0.188

±0.010

4.9

±0.25

---

Ferrite Material Constants

Specific Heat

0.25 cal/g/°C

Thermal Conductivity

3.5 - 4.5 mW/cm-°C

Coefficient of Linear Expansion

8 - 10x10^-6/°C

Tensile Strength

4.9 kgf/mm²

Compressive Strength

42 kgf/mm²

Young's Modulus

15x10³ kgf/mm²

Hardness (Knoop)

650

Specific Gravity

≈4.7 g/cm³

Die oben genannten Eigenschaften sind typisch für Amidon MnZn- und NiZn-Ferrite.

The above quoted properties are typical for Amidon MnZn and NiZn ferrites.

Ferrit-Ringkern für Breitbandtransformatoren

Spezifikationen für FT50-J RF Toroids
Temperaturstabilität (ppm / ° C		= 6000
Farbcode		= mattes Schwarz
Anwendungsfrequenzbereich
Breitbandtransformatoren	1-50 MHz
Leistungstransformatoren	0.1 - 3 MHz
RFI-Unterdrückung	über 1 MHz
*L = 4200 ±20% uH = (A_LTurns²) / 1000**	Tatsächliche gemessene A_L unter Verwendung von 10 Windungen # 28 Draht

FT50-W

Preis- und Lieferzeit auf Anfrage

MATERIAL W (Permeabilität 10.000)

W-Material ist ein Material mit hoher Permeabilität, das für EMI / RMI-Unterdrückung, Gleichtaktdrosseln, Impuls- und Breitbandtransformatoren verwendet wird.

Electrical Specifications FT50-W

Item

Unit/Symbol

Condition

Value

Tol.

Freq. MHz Resonanz

Freq. MHz

Breit-band

Freq.

MHz Drossel

A_L-

mH/1000

@ 5 gauss in a de-gaussed state

5430

±30%

1-250 kHz

2 kHz -

2 MHz

100 kHz-

1 MHz

l_e

N/A

2.95

(29.5)

±10%

Saturation Flux Density (4,700 G at 15 Oe, 25°C)

470 mT, 11.9 A•T/cm

Effective Path Length

A_e

cm²

N/A

0.126

(12.9)

±10%

Curie Temperature

210°C

Effective Cross-Sectional

V_e

cm³

N/A

0.373

(381)

±10%

Maximum Usable Frequency (50% roll-off)

≤1.5 MHz

Effective Core Volume

Density

g/cm³

N/A

4.8

Typ.

Remanence (1,500 G, 25°C)

150 mT

Permeability

µ_i

Typical

10.000

±20%

Coercivity

Oe, A/m

Typical

0.04, 3

Typ.

Flux Density

Gauss, B

Typical

4300

Typ.

Resistivity

5 Ω-m

Gauss, H

@ 1194 A/m, 15 oe mT

430

Typ.

Curie temperature

°C

T_c

> 125

Typ.

Density

4.8 g/cm³

WaAc

0.05

Resistivity

Ω cm p

Typical

0.15

Typ.

Relative Loss Factor

10 ^-6

Tan δ/ µ_i

˂7

Typ.

kHz

@ Frequency

Typ.

Max. Usable freq.

MHz

(50% roll-off)

˂0.25

Typ.

Remanence

G, mT

Typical

800, 80

Typ.

Disaccommodation Factor

10 ^-6

Typical

˂3

Typ.

Condition

25°C

@60°C

@100°C

@120°C

25 kHz

N/A

200 mT

N/A

2000 G

N/A

100 kHz

N/A

100 mT

N/A

1000 G

N/A

III

500 kHz

N/A

50 mT

N/A

500 G

N/A

700 kHz

N/A

50 mT

N/A

500 G

N/A

Case

Toleranz

Weight

Gewicht

B (Outer Diameter)/mm

0.500

0.510 Max

12.7

12.96 Max

1.90 g

A (Inner Diameter)/mm

0.281

0.271 Min

7.14

6.88 Min

---

H (Height)/mm

0.188

0.193 Max

4.78

4.91 Max

---

INDUCTANCE

A_L-value (nH/T²)

Test conditions

5430 ± 30%

10 kHz

0.5 mT (For N = 5, use 0.139 mA), 25°C

ELECTRICAL LOSSES

Tan δ/ µ_i

Production lot limit Average

Test conditions

≤3.5·10 ^-6

≤3·10 ^-6

10 kHz

0.5 mT, 25ºC

≤55·10 ^-6

≤45·10 ^-6

100 kHz

FT50-WC

Preis- und Lieferzeit auf Anfrage

MATERIAL WC (Permeabilität 10.000)

W-Material ist ein Material mit hoher Permeabilität, das für EMI / RMI-Unterdrückung, Gleichtaktdrosseln, Impuls- und Breitbandtransformatoren verwendet wird.

Electrical Specifications FT50-WC

Item

Unit/Symbol

Condition

Value

Tol.

Freq. MHz Resonanz

Freq. MHz

Breit-band

Freq.

MHz Drossel

A_L-

mH/1000

@ 5 gauss in a de-gaussed state

5430

±30%

1-250 kHz

2 kHz -

2 MHz

100 kHz-

1 MHz

l_e

N/A

2.95

(29.5)

±10%

Saturation Flux Density (4,700 G at 15 Oe, 25°C)

470 mT, 11.9 A•T/cm

Effective Path Length

A_e

cm²

N/A

0.126

(12.9)

±10%

Curie Temperature

210°C

Effective Cross-Sectional

V_e

cm³

N/A

0.373

(381)

±10%

Maximum Usable Frequency (50% roll-off)

≤1.5 MHz

Effective Core Volume

Density

g/cm³

N/A

4.8

Typ.

Remanence (1,500 G, 25°C)

150 mT

Permeability

µ_i

Typical

10.000

±20%

Coercivity

Oe, A/m

Typical

0.04, 3

Typ.

Flux Density

Gauss, B

Typical

4300

Typ.

Resistivity

5 Ω-m

Gauss, H

@ 1194 A/m, 15 oe mT

430

Typ.

Curie temperature

°C

T_c

> 125

Typ.

Density

4.8 g/cm³

WaAc

0.05

Resistivity

Ω cm p

Typical

0.15

Typ.

Relative Loss Factor

10 ^{-6

}

Tan δ/ µ_i

˂7

Typ.

kHz

@ Frequency

Typ.

Max. Usable freq.

MHz

(50% roll-off)

˂0.25

Typ.

Remanence

G, mT

Typical

800, 80

Typ.

Disaccommodation Factor

10 ^-6

Typical

˂3

Typ.

Condition

25°C

@60°C

@100°C

@120°C

25 kHz

N/A

200 mT

N/A

2000 G

N/A

100 kHz

N/A

100 mT

N/A

1000 G

N/A

III

500 kHz

N/A

50 mT

N/A

500 G

N/A

700 kHz

N/A

50 mT

N/A

500 G

N/A

Case

Toleranz

Weight

Gewicht

B (Outer Diameter)/mm

0.500

0.510 Max

12.7

12.96 Max

1.90 g

A (Inner Diameter)/mm

0.281

0.271 Min

7.14

6.88 Min

---

H (Height)/mm

0.188

0.193 Max

4.78

4.91 Max

---

INDUCTANCE

A_L-value (nH/T²)

Test conditions

5430 ± 30%

10 kHz

0.5 mT (For N = 5, use 0.139 mA), 25°C

ELECTRICAL LOSSES

Tan δ/ µ_i

Production lot limit Average

Test conditions

≤3.5·10 ^-6

≤3·10 ^-6

10 kHz

0.5 mT, 25ºC

≤55·10 ^-6

≤45·10 ^-6

100 kHz

COATING

Epoxy für den Dauerbetrieb bei 200 ° C ausgelegt.

Epoxy rated for 200°C continuous operation.

Spannungsbruchwert 1.500 V Min. Draht-zu-Draht

Voltage breakdown rating 1,500 V Min Wire-to-Wire.

FT50A-16

MATERIAL A-16 (Permeabilität 120)

Ein Nickel-Zink-Material, das mittlere Temperaturstabilität, aber eine hohe Güte bietet (0,2 bis 15 MHz). In erster Linie Ersatz als Ringkern in Spulen hoher Güte. Auch lieferbar in Stabform oder als Breitband-Balunkern.

Ein hochfrequenter NiZn-Ferrit, entwickelt für eine Reihe von induktiven Anwendungen bis 25 MHz. Dieses Material wird auch in EMI-Anwendungen zur Unterdrückung von Störfrequenzen über 200 MHz verwendet. EMI-Unterdrückung Perlen, Perlen auf Leitungen, SM-Perlen, Wundperlen, Multi-Apertur-Kerne, Rundkabel snap-its, Stangen, Antenne / RFID-Stäbe und Toroide sind alle in 16 Material erhältlich. Starke Magnetfelder oder übermäßige mechanische Beanspruchungen können zu irreversiblen Veränderungen der Durchlässigkeit und der Verluste führen.

A-16 Material

Ferrit-Toroide Ferrit-Toroide A-16 Material und ist für induktive Anwendungen bis 25 MHz ausgelegt und unterdrückt auch Störfrequenzen von 200 MHz bis 1000 MHz

A high frequency NiZn ferrite developed for a range of inductive applications up to 25 MHz. This material is also used in EMI applications for suppression of noise frequencies above 200 MHz. EMI suppression beads, beads on leads, SM beads, wound beads, multi-aperture cores, round cable snap-its, rods, antenna/RFID rods, and toroids are all available in A-16 material. Strong magnetic fields or excessive mechanical stresses may result in irreversible changes in permeability and losses.

A-16 Material

Ferrite Toroids Ferrite Toroids A-16 Material and is designed for inductive applications up to 25 MHz and also suppresses noise frequencies from 200 MHz to 1000 MHz

16 Material Characteristics

Property

Item

Unit/

Symbol

Permea-bilität

Max.

Permeabilität

Freq. MHz Reso-nanz

Freq. MHz

Breit-band

Freq.

MHz

Drossel

Initial Permeability@ B < 10 gauss

µ_i

120

450

0.2-10

10-200

200-1000

Flux Density @ Field Strength

Gauss
Oersted

2500

Mittlere Feld-

Linienlänge

Oberfläche

Volumen

Residual Flux Density

Gauss

B_r

1000

3.12 cm

0.15cm³

0.47 cm³

Coercive Force

Oersted

H_c

1.1

Sättigungsflußdichte

10 Oe (Gauß)

2150

Vol.Widerstand Ω/cm

10⁸

Loss Factor @ Frequency

10 ^-6MHz

Tan δ/ µ_i

Remanenzflußdichte

10 Oe (Gauß)

1200

Σl/A(cm^-1)

20.8

Temperature Coefficient of Initial Permeability (20 -70°C)

%/°C

0.10

Density gm/cm³

≈4.7 g/cm³

Curie Temperature

°C

T_c

300

Resistivity

Ohm-cm

1×10⁸

Electrical Specifications

Bestellnr.

Kern-Material

Item

Unit/Symbol

Condition

Value

A_L-Toleranz

FT50A-16

Ferrit Toroid

A_L

nH/N2

@ 10 KHz

±25%

NiZn

N/A

3.12

±10%

cm²

N/A

0.15

±10%

cm³

N/A

0.47

±10%

Initial Permeability

µ0

@ B < 10 gauss

120

±20%

Temp. Coeff. Of initial

Permeability

% °C

20-70°C

0.10

Typ.

Coercive Force

oersted

0.45

Typ.

Residual Flux Density

Gauss, Br

N/A

1300

Typ.

Flux Density

Gauss, B

Initial (B), oersted

2500

Typ.

Gauss, H @

@ Field Strength (H), oersted

Typ.

Curie temperature

°C

300

Nom.

Resistivity

Ω cm. p

@ Field Strength

10⁸

Typ.

Loss Factor

1×10⁸Tan δ/ µ_i

Initial

Typ.

MHz

@ Frequency

Typ.

Chart Legend

Σl/A(cm^-1):

l_e :

A_e :

V_e :

A_L :

Core Constant

Effective Path Length

Effective Cross-Sectional

Effective Core Volume

Inductance Factor

20.9

2.95

0.129

0.38

Dimensional Tolerances

Case

Toleranz

Weight

Gewicht

B (Outer Diameter)/mm

0.500

±0.010

12.7

±0.25

2.40 g

2.40 gramm

A (Inner Diameter)/mm

0.312

±0.008

7.90

±0.20

---

H (Height)/mm

0.25

±0.010

6.35

-0.25

---

Ferrite Material Constants

Specific Heat

0.25 cal/g/°C

Thermal Conductivity

3.5 - 4.5 mW/cm-°C

Coefficient of Linear Expansion

8 - 10x10^-6/°C

Tensile Strength

4.9 kgf/mm²

Compressive Strength

42 kgf/mm²

Young's Modulus

15x10³ kgf/mm²

Hardness (Knoop)

650

Specific Gravity

≈4.7 g/cm³

Die oben genannten Eigenschaften sind typisch für Amidon MnZn- und NiZn-Ferrite.

The above quoted properties are typical for Amidon MnZn and NiZn ferrites.

FT50A-27

MATERIAL 27 (Permeabilität 2030)

A manganese-zinc material with high saturation flux density at high temperatures. Low core losses in the range of 1 kHz to 1 MHz. Ideal for transformers and broadband transformers up to 30 MHz as well as for secondary wave attenuation between 2 and 40 MHz.

27 Material Characteristics

Property

Item

Unit/

Symbol

Permea-bilität

Max.

Permeabilität

Freq. MHz Reso-nanz

Freq. MHz

Breit-band

Freq.

MHz

Drossel

Initial Permeability@ B < 10 gauss

µ_i

2030

6000

0.001-1

0.5-30

10-50

Flux Density @ Field Strength

Gauss
Oersted

5100

Mittlere Feld-

Linienlänge

Oberfläche

Volumen

Residual Flux Density

Gauss

B_r

1800

3.12 cm

0.15cm³

0.47 cm³

Coercive Force

Oersted

H_c

0.25

Sättigungsflußdichte

10 Oe (Gauß)

4600

Vol.Widerstand Ω/cm

10²

Loss Factor @ Frequency

10 ^-6MHz

Tan δ/ µ_i

0.1

Remanenzflußdichte

10 Oe (Gauß)

1150

Σl/A(cm^-1)

20.8

Temperature Coefficient of Initial Permeability (20 -70°C)

%/°C

1.2

Density gm/cm³

≈4.7 g/cm³

Curie Temperature

°C

T_c

˃200

Resistivity

Ohm-cm

100

1×10⁵

Electrical Specifications

Bestellnr.

Kern-Material

Item

Unit/Symbol

Condition

Value

A_L-Toleranz

FT50A-27

Ferrit Toroid

A_L

nH/N2

@ 10 KHz

1300

±25%

NiZn

N/A

3.12

±10%

cm²

N/A

0.15

±10%

cm³

N/A

0.47

±10%

Initial Permeability

µ0

@ B < 10 gauss

2030

±20%

Temp. Coeff. Of initial

Permeability

% °C

20-70°C

0.7

Typ.

Coercive Force

oersted

0.30

Typ.

Residual Flux Density

Gauss, Br

N/A

1800

Typ.

Flux Density

Gauss, B

Initial (B), oersted

5100

Typ.

Gauss, H @

@ Field Strength (H), oersted

Typ.

Curie temperature

°C

˃200

Nom.

Resistivity

Ω cm. p

@ Field Strength

10²

Typ.

Loss Factor

1×10⁸Tan δ/ µ_i

Initial

Typ.

MHz

@ Frequency

0.1

Typ.

Chart Legend

Σl/A(cm^-1):

l_e :

A_e :

V_e :

A_L :

Core Constant

Effective Path Length

Effective Cross-Sectional

Effective Core Volume

Inductance Factor

20.9

2.95

0.129

0.38

1300

±25%

Dimensional Tolerances

Case

Toleranz

Weight

Gewicht

B (Outer Diameter)/mm

0.500

±0.010

12.7

±0.25

2.40 g

2.40 gramm

A (Inner Diameter)/mm

0.312

±0.008

7.90

±0.20

---

H (Height)/mm

0.25

±0.010

6.35

-0.25

---

Ferrite Material Constants

Specific Heat

0.25 cal/g/°C

Thermal Conductivity

3.5 - 4.5 mW/cm-°C

Coefficient of Linear Expansion

8 - 10x10^-6/°C

Tensile Strength

4.9 kgf/mm²

Compressive Strength

42 kgf/mm²

Young's Modulus

15x10³ kgf/mm²

Hardness (Knoop)

650

Specific Gravity

≈4.7 g/cm³

Die oben genannten Eigenschaften sind typisch für Amidon MnZn- und NiZn-Ferrite.

The above quoted properties are typical for Amidon MnZn and NiZn ferrites.

FT50A-34

MATERIAL 34 (Permeabilität 830)

Ein Nickel-Zink Material mit großem Volumenwiderstand. Wird häufig für Spulen mittlerer Frequenz in Ringform und für Breitbandübertrager bis 50 MHz benutzt. Wird als Ferritperle besonders zur Dämpfung unerwünschter Oberwellen im Bereich von 50 bis 200 MHz eingesetzt. Frequenz hohe Güte 40 MHz bis 400 MHz.

Beschichtungsoptionen:
- Toroide mit einem Außendurchmesser von 9,5 mm (0,375 ") oder kleiner können mit Parylen C beschichtet werden. Die Parylene-Beschichtung erhöht die Abmessungen "A" und "C" und verringert die Abmessung "B" um maximal 0,038 mm (0,0015 "). Die neunte Ziffer einer Parylene-beschichteten Toroid-Teilenummer ist eine "1". Siehe Referenztabellen für die Materialeigenschaften von Parylene C. Parylene C-Beschichtung sind RoHS-konform.

34 Material

Dieses NiZn ist unser populärster Ferrit zur Unterdrückung leitungsgebundener elektromagnetischer Störungen von 20 MHz bis 250 MHz. Dieses Material wird auch für induktive Anwendungen wie Hochfrequenz-Gleichtaktdrosseln verwendet. EMI-Unterdrückung Perlen, Perlen auf Leitungen, SM-Perlen, Multi-Apertur-Kernen, Rundkabel EMI-Entstörungskerne, Rundkabel Snap-its, Flachkabel EMI-Entstörungskerne, Flachkabel snap-its, verschiedene Unterdrückung Kerne, Spulen und Ringspulen sind alle erhältlich in 43 Material.

Features

NiZn ferrite material with a range for inductive applications up to 25 MHz, that can be used for EMI applications to suppress noise frequencies above 200 MHz.

Burnished to break sharp edges, can contain Parylene C coat at smaller diameters from the length of 9.5mm (0.375") or a uniform coating of thermo-set plastic at larger dimensions (if part numbers ends with a C).

Coating Options:

– Toroids with an outside diameter of 9.5 mm (0.375″) or smaller can be supplied Parylene C coated. The Parylene coating will increase the “A” and “C” dimensions and decrease the “B” dimension a maximum of 0.038 mm (0.0015″). The ninth digit of a Parylene coated toroid part number is a “1”. See reference tables for the material characteristics of Parylene C. Parylene C coating is RoHS compliant.

34 Material This NiZn is our most popular ferrite for suppression of conducted EMI from 20 MHz to 250 MHz. This material is also used for inductive applications such as high frequency common-mode chokes. EMI suppression beads, beads on leads, SM beads, multi-aperture cores, round cable EMI suppression cores, round cable snap-its, flat cable EMI suppression cores, flat cable snap-its, miscellaneous suppression cores, bobbins, and toroids are all available in 34 material.

Chart Legend
Σl/A : Core Constant, l_e : Effective Path Length, A_e : Effective Cross-Sectional Area, V_e : Effective Core Volume
A_L : Inductance Factor

34 Material Characteristics

Property

Item

Unit/

Symbol

Value

Max.

Permeabilität

Freq. MHz Reso-nanz

Freq. MHz

Breit-band

Freq.

MHz

Drossel

Initial Permeability@ B < 10 gauss

µ_i

830

3000

0.01-1

1-50

30-600

Flux Density @ Field Strength

Gauss
Oersted

B

H

2900

10

Mittlere Feld-

Linienlänge

Oberfläche

Volumen

Residual Flux Density

Gauss

B_r

1300

3.12 cm

0.15cm³

0.47 cm³

Coercive Force

Oersted

H_c

0.45

Sättigungsflußdichte

10 Oe (Gauß)

1300

Vol.Widerstand Ω/cm

10⁵

Loss Factor @ Frequency

10 ^-6MHz

Tan δ/ µ_i

250

1

Remanenzflußdichte

10 Oe (Gauß)

1300

Σl/A(cm^-1)

20.8

Temperature Coefficient of Initial Permeability (20 -70°C)

%/°C

1.25

Density gm/cm³

≈4.7 g/cm³

Curie Temperature

°C

T_c

>130

Resistivity

Ohm-cm

p

1×10^⁵

Electrical Specifications

Bestellnr.

Kern-Material

Item

Unit/Symbol

Condition

Value

A_L-Toleranz

FT50A-34

Ferrit Toroid

A_L

nH/N2

@ 10 KHz

480

±20%

NiZn

Le

cm

N/A

3.12

±10%

Ae

cm²

N/A

0.15

±10%

Ve

cm³

N/A

0.47

±10%

Initial Permeability

µ0

@ B < 10 gauss

850

±20%

Temp. Coeff. Of initial

Permeability

% °C

20-70°C

1.25

Typ.

Coercive Force

Hc

oersted

0.45

Typ.

Residual Flux Density

Gauss, Br

N/A

1300

Typ.

Flux Density

Gauss, B

Initial (B), oersted

2900

Typ.

Gauss, H @

@ Field Strength (H), oersted

10

Typ.

Curie temperature

°C

Tc

> 130

Nom.

Resistivity

Ω cm. p

@ Field Strength

10⁵

Typ.

Loss Factor

1×10⁸

Tan δ/ µ_i

Initial

250

Typ.

MHz

@ Frequency

1

Typ.

Chart Legend

Σl/A(cm^-1):

l_e :

A_e :

V_e :

A_L :

Core Constant

Effective Path Length

Effective Cross-Sectional

Effective Core Volume

Inductance Factor

20.9

2.95

0.129

0.38

480

Dimensional Tolerances

Case

In

Toleranz

mm

Toleranz

Weight

Gewicht

B (Outer Diameter)/mm

0.500

±0.010

12.7

±0.25

2.00 g

2.00 gramm

A (Inner Diameter)/mm

0.312

±0.008

7.90

±0.20

---

---

H (Height)/mm

0.25

±0.010

6.35

-0.25

---

--

Ferrite Material Constants

Specific Heat

0.25 cal/g/°C

Thermal Conductivity

3.5 - 4.5 mW/cm-°C

Coefficient of Linear Expansion

8 - 10x10^-6/°C

Tensile Strength

4.9 kgf/mm²

Compressive Strength

42 kgf/mm²

Young's Modulus

15x10³ kgf/mm²

Hardness (Knoop)

650

Specific Gravity

≈4.7 g/cm³

Die oben genannten Eigenschaften sind typisch für Amidon MnZn- und NiZn-Ferrite.

The above quoted properties are typical for Amidon MnZn and NiZn ferrites.

This NiZn is our most popular ferrite for suppression of conducted EMI from 20 MHz to 250 MHz. This material is also used for inductive applications such as high frequency common-mode chokes. EMI suppression beads, beads on leads, SM beads, multi-aperture cores, round cable EMI suppression cores, round cable snap-its, flat cable EMI suppression cores, flat cable snap-its, miscellaneous suppression cores, bobbins, and toroids are all available in 34 material.

34 Material is used for EMI/RFI suppression in the 20 MHz to 250 MHz range.

FT50A-43

MATERIAL A-43 (Permeabilität 850)

Ein Nickel-Zink Material mit großem Volumenwiderstand. Wird häufig für Spulen mittlerer Frequenz in Ringform und für Breitbandübertrager bis 50 MHz benutzt. Wird als Ferritperle besonders zur Dämpfung unerwünschter Oberwellen im Bereich von 50 bis 200 MHz eingesetzt. Frequenz hohe Güte 40 MHz bis 400 MHz.

Beschichtungsoptionen:
- Toroide mit einem Außendurchmesser von 9,5 mm (0,375 ") oder kleiner können mit Parylen C beschichtet werden. Die Parylene-Beschichtung erhöht die Abmessungen "A" und "C" und verringert die Abmessung "B" um maximal 0,038 mm (0,0015 "). Die neunte Ziffer einer Parylene-beschichteten Toroid-Teilenummer ist eine "1". Siehe Referenztabellen für die Materialeigenschaften von Parylene C. Parylene C-Beschichtung sind RoHS-konform.

Dieses NiZn ist unser populärster Ferrit zur Unterdrückung leitungsgebundener elektromagnetischer Störungen von 20 MHz bis 250 MHz. Dieses Material wird auch für induktive Anwendungen wie Hochfrequenz-Gleichtaktdrosseln verwendet. EMI-Unterdrückung Perlen, Perlen auf Leitungen, SM-Perlen, Multi-Apertur-Kernen, Rundkabel EMI-Entstörungskerne, Rundkabel Snap-its, Flachkabel EMI-Entstörungskerne, Flachkabel snap-its, verschiedene Unterdrückung Kerne, Spulen und Ringspulen sind alle erhältlich in 43 Material.

Features

NiZn ferrite material with a range for inductive applications up to 25 MHz, that can be used for EMI applications to suppress noise frequencies above 200 MHz.

Burnished to break sharp edges, can contain Parylene C coat at smaller diameters from the length of 9.5mm (0.375") or a uniform coating of thermo-set plastic at larger dimensions (if part numbers ends with a C).

Coating Options:

– Toroids with an outside diameter of 9.5 mm (0.375″) or smaller can be supplied Parylene C coated. The Parylene coating will increase the “A” and “C” dimensions and decrease the “B” dimension a maximum of 0.038 mm (0.0015″). The ninth digit of a Parylene coated toroid part number is a “1”. See reference tables for the material characteristics of Parylene C. Parylene C coating is RoHS compliant.

43 Material This NiZn is our most popular ferrite for suppression of conducted EMI from 20 MHz to 250 MHz. This material is also used for inductive applications such as high frequency common-mode chokes. EMI suppression beads, beads on leads, SM beads, multi-aperture cores, round cable EMI suppression cores, round cable snap-its, flat cable EMI suppression cores, flat cable snap-its, miscellaneous suppression cores, bobbins, and toroids are all available in 43 material.

Chart Legend
Σl/A : Core Constant, l_e : Effective Path Length, A_e : Effective Cross-Sectional Area, V_e : Effective Core Volume
A_L : Inductance Factor

34 Material Characteristics

Property

Item

Unit/

Symbol

Value

Max.

Permeabilität

Freq. MHz Reso-nanz

Freq. MHz

Breit-band

Freq.

MHz

Drossel

Initial Permeability@ B < 10 gauss

µ_i

850

3000

0.01-1

1-50

30-600

Flux Density @ Field Strength

Gauss
Oersted

B

H

2900

10

Mittlere Feld-

Linienlänge

Oberfläche

Volumen

Residual Flux Density

Gauss

B_r

1300

3.12 cm

0.15cm³

0.47 cm³

Coercive Force

Oersted

H_c

0.45

Sättigungsflußdichte

10 Oe (Gauß)

1300

Vol.Widerstand Ω/cm

10⁵

Loss Factor @ Frequency

10 ^-6MHz

Tan δ/ µ_i

250

1

Remanenzflußdichte

10 Oe (Gauß)

1300

Σl/A(cm^-1)

20.8

Temperature Coefficient of Initial Permeability (20 -70°C)

%/°C

1.25

Density gm/cm³

≈4.7 g/cm³

Curie Temperature

°C

T_c

>130

Resistivity

Ohm-cm

p

1×10^⁵

Electrical Specifications

Bestellnr.

Kern-Material

Item

Unit/Symbol

Condition

Value

A_L-Toleranz

FT50A-43

Ferrit Toroid

A_L

nH/N2

@ 10 KHz

480

±20%

NiZn

Le

cm

N/A

3.12

±10%

Ae

cm²

N/A

0.15

±10%

Ve

cm³

N/A

0.47

±10%

Initial Permeability

µ0

@ B < 10 gauss

850

±20%

Temp. Coeff. Of initial

Permeability

% °C

20-70°C

1.25

Typ.

Coercive Force

Hc

oersted

0.45

Typ.

Residual Flux Density

Gauss, Br

N/A

1300

Typ.

Flux Density

Gauss, B

Initial (B), oersted

2900

Typ.

Gauss, H @

@ Field Strength (H), oersted

10

Typ.

Curie temperature

°C

Tc

> 130

Nom.

Resistivity

Ω cm. p

@ Field Strength

10⁵

Typ.

Loss Factor

1×10⁸Tan δ/ µ_i

Initial

250

Typ.

MHz

@ Frequency

1

Typ.

Chart Legend

Σl/A(cm^-1):

l_e :

A_e :

V_e :

A_L :

Core Constant

Effective Path Length

Effective Cross-Sectional

Effective Core Volume

Inductance Factor

20.9

2.95

0.129

0.38

480

Dimensional Tolerances

Case

In

Toleranz

mm

Toleranz

Weight

Gewicht

B (Outer Diameter)/mm

0.500

±0.010

12.7

±0.25

2.00 g

2.00 gramm

A (Inner Diameter)/mm

0.312

±0.008

7.90

±0.20

---

---

H (Height)/mm

0.25

±0.010

6.35

-0.25

---

--

Ferrite Material Constants

Specific Heat

0.25 cal/g/°C

Thermal Conductivity

3.5 - 4.5 mW/cm-°C

Coefficient of Linear Expansion

8 - 10x10^-6/°C

Tensile Strength

4.9 kgf/mm²

Compressive Strength

42 kgf/mm²

Young's Modulus

15x10³ kgf/mm²

Hardness (Knoop)

650

Specific Gravity

≈4.7 g/cm³

Die oben genannten Eigenschaften sind typisch für Amidon MnZn- und NiZn-Ferrite.

The above quoted properties are typical for Amidon MnZn and NiZn ferrites.

This NiZn is our most popular ferrite for suppression of conducted EMI from 20 MHz to 250 MHz. This material is also used for inductive applications such as high frequency common-mode chokes. EMI suppression beads, beads on leads, SM beads, multi-aperture cores, round cable EMI suppression cores, round cable snap-its, flat cable EMI suppression cores, flat cable snap-its, miscellaneous suppression cores, bobbins, and toroids are all available in 43 material..

43 Material is used for EMI/RFI suppression in the 20 MHz to 250 MHz range.

FT50A-61

MATERIAL 61 (Permeabilität 125)

Ein hochfrequenter NiZn-Ferrit, entwickelt für eine Reihe von induktiven Anwendungen bis 25 MHz. Dieses Material wird auch in EMI-Anwendungen zur Unterdrückung von Störfrequenzen über 200 MHz verwendet. EMI-Unterdrückung Perlen, Perlen auf Leitungen, SM-Perlen, Wundperlen, Multi-Apertur-Kerne, Rundkabel snap-its, Stangen, Antenne / RFID-Stäbe und Toroide sind alle in 16 Material erhältlich. Starke Magnetfelder oder übermäßige mechanische Beanspruchungen können zu irreversiblen Veränderungen der Durchlässigkeit und der Verluste führen.

61 Material

Ferrit-Toroide Ferrit-Toroide 61 Material und ist für induktive Anwendungen bis 25 MHz ausgelegt und unterdrückt auch Störfrequenzen von 200 MHz bis 1000 MHz

A high frequency NiZn ferrite developed for a range of inductive applications up to 25 MHz. This material is also used in EMI applications for suppression of noise frequencies above 200 MHz. EMI suppression beads, beads on leads, SM beads, wound beads, multi-aperture cores, round cable snap-its, rods, antenna/RFID rods, and toroids are all available in 16 material. Strong magnetic fields or excessive mechanical stresses may result in irreversible changes in permeability and losses

61 Material

Ferrite Toroids Ferrite Toroids 61 Material and is designed for inductive applications up to 25 MHz and also suppresses noise frequencies from 200 MHz to 1000 MHz

61 Material Characteristics

Property

Item

Unit/

Symbol

Permea-bilität

Max.

Permeabilität

Freq. MHz Reso-nanz

Freq. MHz

Breit-band

Freq.

MHz

Drossel

Initial Permeability@ B < 10 gauss

µ_i

125

450

0.2-10

10-200

200-1000

Flux Density @ Field Strength

Gauss
Oersted

2500

Mittlere Feld-

Linienlänge

Oberfläche

Volumen

Residual Flux Density

Gauss

B_r

1000

3.12 cm

0.15cm³

0.47 cm³

Coercive Force

Oersted

H_c

1.1

Sättigungsflußdichte

10 Oe (Gauß)

2150

Vol.Widerstand Ω/cm

10⁸

Loss Factor @ Frequency

10 ^-6MHz

Tan δ/ µ_i

Remanenzflußdichte

10 Oe (Gauß)

1200

Σl/A(cm^-1)

20.8

Temperature Coefficient of Initial Permeability (20 -70°C)

%/°C

0.10

Density gm/cm³

≈4.7 g/cm³

Curie Temperature

°C

T_c

300

Resistivity

Ohm-cm

1×10⁸

Electrical Specifications

Bestellnr.

Kern-Material

Item

Unit/Symbol

Condition

Value

A_L-Toleranz

FT50A-61

Ferrit Toroid

A_L

nH/N2

@ 10 KHz

±25%

NiZn

N/A

3.12

±10%

cm²

N/A

0.15

±10%

cm³

N/A

0.47

±10%

Initial Permeability

µ0

@ B < 10 gauss

830

±20%

Temp. Coeff. Of initial

Permeability

% °C

20-70°C

0.10

Typ.

Coercive Force

oersted

0.45

Typ.

Residual Flux Density

Gauss, Br

N/A

1300

Typ.

Flux Density

Gauss, B

Initial (B), oersted

2500

Typ.

Gauss, H @

@ Field Strength (H), oersted

Typ.

Curie temperature

°C

300

Nom.

Resistivity

Ω cm. p

@ Field Strength

10⁸

Typ.

Loss Factor

1×10⁸Tan δ/ µ_i

Initial

Typ.

MHz

@ Frequency

Typ.

Chart Legend

Σl/A(cm^-1):

l_e :

A_e :

V_e :

A_L :

Core Constant

Effective Path Length

Effective Cross-Sectional

Effective Core Volume

Inductance Factor

20.9

2.95

0.129

0.38

Dimensional Tolerances

Case

Toleranz

Weight

Gewicht

B (Outer Diameter)/mm

0.500

±0.010

12.7

±0.25

2.40 g

2.40 gramm

A (Inner Diameter)/mm

0.312

±0.008

7.90

±0.20

---

H (Height)/mm

0.25

±0.010

6.35

-0.25

---

Ferrite Material Constants

Specific Heat

0.25 cal/g/°C

Thermal Conductivity

3.5 - 4.5 mW/cm-°C

Coefficient of Linear Expansion

8 - 10x10^-6/°C

Tensile Strength

4.9 kgf/mm²

Compressive Strength

42 kgf/mm²

Young's Modulus

15x10³ kgf/mm²

Hardness (Knoop)

650

Specific Gravity

≈4.7 g/cm³

Die oben genannten Eigenschaften sind typisch für Amidon MnZn- und NiZn-Ferrite.

The above quoted properties are typical for Amidon MnZn and NiZn ferrites.

FT50A-63

MATERIAL 63 (Permeabilität 40)

Ein Nickel-Zink-Material mit geringer Permeabilität und großem Volumenwiderstand. Material hoher Güte für den Frequenzbereich zwischen 15 und 25 MHz. Wird als Ringkern sehr häufig für Spulen hoher Güte verwandt. Lieferbar in Stab-, Perlen- oder Ringform.

Eigenschaften
NiZn-Ferritmaterial mit einer Reichweite von bis zu 50 MHz für Breitbandtransformatoren,
Antennen und HF-Hoch-Q-Induktivitätsanwendungen.

Features

NiZn ferrite material with a range up to 50 MHz used for broadband transformers,

antennas and HF high Q inductor applications

63 Material Characteristics

Property

Item

Unit/

Symbol

Permea-bilität

Max.

Permeabilität

Freq. MHz Reso-nanz

Freq. MHz

Breit-band

Freq.

MHz

Drossel

Initial Permeability@ B < 10 gauss

µ_i

125

10-80

50-500

500-2000

Flux Density @ Field Strength

Gauss
Oersted

2500

Mittlere Feld-

Linienlänge

Oberfläche

Volumen

Residual Flux Density

Gauss

B_r

1000

3.12 cm

0.15cm³

0.47 cm³

Coercive Force

Oersted

H_c

2.5

Sättigungsflußdichte

10 Oe (Gauß)

1850

Vol.Widerstand Ω/cm

10⁷

Loss Factor @ Frequency

10 ^-6MHz

Tan δ/ µ_i

200

Remanenzflußdichte

10 Oe (Gauß)

750

Σl/A(cm^-1)

20.8

Temperature Coefficient of Initial Permeability (20 -70°C)

%/°C

0.05

Density gm/cm³

≈4.7 g/cm³

Curie Temperature

°C

T_c

˃475

Resistivity

Ohm-cm

1x10⁷

Electrical Specifications

Bestellnr.

Kern-Material

Item

Unit/Symbol

Condition

Value

A_L-Toleranz

FT50A-63

Ferrit Toroid

A_L

nH/N2

@ 10 KHz

+35%, -25%

NiZn

N/A

3.12

±10%

cm²

N/A

0.15

±10%

cm³

N/A

0.47

±10%

Initial Permeability

µ0

@ B < 10 gauss

±20%

Temp. Coeff. Of initial

Permeability

% °C

20-70°C

0.05

Typ.

Coercive Force

oersted

3.5

Typ.

Residual Flux Density

Gauss, Br

N/A

800

Typ.

Flux Density

Gauss, B

Initial (B), oersted

2500

Typ.

Gauss, H @

@ Field Strength (H), oersted

Typ.

Curie temperature

°C

˃475

Nom.

Resistivity

Ω cm. p

@ Field Strength

10⁷

Typ.

Loss Factor

1×10⁸Tan δ/ µ_i

Initial

200

Typ.

MHz

@ Frequency

Typ.

Chart Legend

Σl/A(cm^-1):

l_e :

A_e :

V_e :

A_L :

Core Constant

Effective Path Length

Effective Cross-Sectional

Effective Core Volume

Inductance Factor

20.9

2.95

0.129

0.38

+35%, -25%

Dimensional Tolerances

Case

Toleranz

Weight

Gewicht

B (Outer Diameter)/mm

0.500

±0.010

12.7

±0.25

2.40 g

2.40 gramm

A (Inner Diameter)/mm

0.312

±0.008

7.90

±0.20

---

H (Height)/mm

0.25

±0.010

6.35

-0.25

---

Ferrite Material Constants

Specific Heat

0.25 cal/g/°C

Thermal Conductivity

3.5 - 4.5 mW/cm-°C

Coefficient of Linear Expansion

8 - 10x10^-6/°C

Tensile Strength

4.9 kgf/mm²

Compressive Strength

42 kgf/mm²

Young's Modulus

15x10³ kgf/mm²

Hardness (Knoop)

650

Specific Gravity

≈4.7 g/cm³

Die oben genannten Eigenschaften sind typisch für Amidon MnZn- und NiZn-Ferrite.

The above quoted properties are typical for Amidon MnZn and NiZn ferrites.

FT50A-67

MATERIAL A-67 (Permeabilität 40)

Eigenschaften
NiZn-Ferritmaterial mit einer Reichweite von bis zu 50 MHz für Breitbandtransformatoren,
Antennen und HF-Hoch-Q-Induktivitätsanwendungen.

Features

NiZn ferrite material with a range up to 50 MHz used for broadband transformers, antennas and HF high Q inductor applications.

A-67 Material Characteristics

Property

Item

Unit/

Symbol

Permea-bilität

Max.

Permeabilität

Freq. MHz Reso-nanz

Freq. MHz

Breit-band

Freq.

MHz

Drossel

Initial Permeability@ B < 10 gauss

µ_i

125

10-80

50-500

500-2000

Flux Density @ Field Strength

Gauss
Oersted

2500

Mittlere Feld-

Linienlänge

Oberfläche

Volumen

Residual Flux Density

Gauss

B_r

1000

3.12 cm

0.15cm³

0.47 cm³

Coercive Force

Oersted

H_c

2.5

Sättigungsflußdichte

10 Oe (Gauß)

1850

Vol.Widerstand Ω/cm

10⁷

Loss Factor @ Frequency

10 ^-6MHz

Tan δ/ µ_i

200

Remanenzflußdichte

10 Oe (Gauß)

750

Σl/A(cm^-1)

20.8

Temperature Coefficient of Initial Permeability (20 -70°C)

%/°C

0.05

Density gm/cm³

≈4.7 g/cm³

Curie Temperature

°C

T_c

˃475

Resistivity

Ohm-cm

1x10⁷

Electrical Specifications

Bestellnr.

Kern-Material

Item

Unit/Symbol

Condition

Value

A_L-Toleranz

FT50A-67

Ferrit Toroid

A_L

nH/N2

@ 10 KHz

+35%, -25%

NiZn

N/A

3.12

±10%

cm²

N/A

0.15

±10%

cm³

N/A

0.47

±10%

Initial Permeability

µ0

@ B < 10 gauss

±20%

Temp. Coeff. Of initial

Permeability

% °C

20-70°C

0.05

Typ.

Coercive Force

oersted

3.5

Typ.

Residual Flux Density

Gauss, Br

N/A

800

Typ.

Flux Density

Gauss, B

Initial (B), oersted

2500

Typ.

Gauss, H @

@ Field Strength (H), oersted

Typ.

Curie temperature

°C

˃475

Nom.

Resistivity

Ω cm. p

@ Field Strength

10⁷

Typ.

Loss Factor

1×10⁸Tan δ/ µ_i

Initial

200

Typ.

MHz

@ Frequency

Typ.

Chart Legend

Σl/A(cm^-1):

l_e :

A_e :

V_e :

A_L :

Core Constant

Effective Path Length

Effective Cross-Sectional

Effective Core Volume

Inductance Factor

20.9

2.95

0.129

0.38

+35%, -25%

Dimensional Tolerances

Case

Toleranz

Weight

Gewicht

B (Outer Diameter)/mm

0.500

±0.010

12.7

±0.25

2.40 g

2.40 gramm

A (Inner Diameter)/mm

0.312

±0.008

7.90

±0.20

---

H (Height)/mm

0.25

±0.010

6.35

-0.25

---

Ferrite Material Constants

Specific Heat

0.25 cal/g/°C

Thermal Conductivity

3.5 - 4.5 mW/cm-°C

Coefficient of Linear Expansion

8 - 10x10^-6/°C

Tensile Strength

4.9 kgf/mm²

Compressive Strength

42 kgf/mm²

Young's Modulus

15x10³ kgf/mm²

Hardness (Knoop)

650

Specific Gravity

≈4.7 g/cm³

Die oben genannten Eigenschaften sind typisch für Amidon MnZn- und NiZn-Ferrite.

The above quoted properties are typical for Amidon MnZn and NiZn ferrites.

FT50A-68

MATERIAL 68 (Permeabilität 16)

68 Material ist

A nickel-zinc material with high volume resistanicht Standard und nur in wenigen Größen verfügbar. Hoher Q-Wert bis zu 100 MHz.nce and excellent temperature stability. High quality between 80 and 180 MHz. Suitable for RF coils, antennas and broadband amplifiers as well as for linear amplifiers.

68 Material is non-standard and only in stock on a few sizes. High Q up to 100 MHz.

68 Material Characteristics

Property

Item

Unit/

Symbol

Permea-bilität

Max.

Permeabilität

Freq. MHz Reso-nanz

Freq. MHz

Breit-band

Freq.

MHz

Drossel

Initial Permeability@ B < 10 gauss

µ_i

80-100

200-1000

1000-5000

Flux Density @ Field Strength

Gauss
Oersted

2700

Mittlere Feld-

Linienlänge

Oberfläche

Volumen

Residual Flux Density

Gauss

B_r

900

3.12 cm

0.15cm³

0.47 cm³

Coercive Force

Oersted

H_c

6.5

Sättigungsflußdichte

10 Oe (Gauß)

2000

Vol.Widerstand Ω/cm

10⁷

Loss Factor @ Frequency

10 ^-6MHz

Tan δ/ µ_i

400

100

Remanenzflußdichte

10 Oe (Gauß)

1000

Σl/A(cm^-1)

20.8

Temperature Coefficient of Initial Permeability (20 -70°C)

%/°C

0.10

Density gm/cm³

≈4.7 g/cm³

Curie Temperature

°C

T_c

˃500

Resistivity

Ohm-cm

1x10⁷

Electrical Specifications

Bestellnr.

Kern-Material

Item

Unit/Symbol

Condition

Value

A_L-Toleranz

FT50A-68

Ferrit Toroid

A_L

nH/N2

@ 10 KHz

7.2 Min

Typ.

NiZn

N/A

3.12

±10%

cm²

N/A

0.15

±10%

cm³

N/A

0.47

±10%

Initial Permeability

µ0

@ B < 10 gauss

±20%

Temp. Coeff. Of initial

Permeability

% °C

20-70°C

0.10

Typ.

Coercive Force

oersted

7.0

Typ.

Residual Flux Density

Gauss, Br

N/A

1000

Typ.

Flux Density

Gauss, B

Initial (B), oersted

2700

Typ.

Gauss, H @

@ Field Strength (H), oersted

Typ.

Curie temperature

°C

˃500

Nom.

Resistivity

Ω cm. p

@ Field Strength

10⁷

Typ.

Loss Factor

1×10⁷

Tan δ/ µ_i

Initial

500

Typ.

MHz

@ Frequency

100

Typ.

Chart Legend

Σl/A(cm^-1):

l_e :

A_e :

V_e :

A_L :

Core Constant

Effective Path Length

Effective Cross-Sectional

Effective Core Volume

Inductance Factor

20.9

2.95

0.129

0.38

7.2 Min

Dimensional Tolerances

Case

Toleranz

Weight

Gewicht

B (Outer Diameter)/mm

0.500

±0.010

12.7

±0.25

2.40 g

2.40 gramm

A (Inner Diameter)/mm

0.312

±0.008

7.90

±0.20

---

H (Height)/mm

0.25

±0.010

6.35

-0.25

---

Ferrite Material Constants

Specific Heat

0.25 cal/g/°C

Thermal Conductivity

3.5 - 4.5 mW/cm-°C

Coefficient of Linear Expansion

8 - 10x10^-6/°C

Tensile Strength

4.9 kgf/mm²

Compressive Strength

42 kgf/mm²

Young's Modulus

15x10³ kgf/mm²

Hardness (Knoop)

650

Specific Gravity

≈4.7 g/cm³

Die oben genannten Eigenschaften sind typisch für Amidon MnZn- und NiZn-Ferrite.

The above quoted properties are typical for Amidon MnZn and NiZn ferrites.

FT50A-72

MATERIAL 72 (Permeabilität 2000)

72 Material Characteristics

Property

Item

Unit/

Symbol

Permea-bilität

Max.

Permeabilität

Freq. MHz Reso-nanz

Freq. MHz

Breit-band

Freq.

MHz

Drossel

Initial Permeability@ B < 10 gauss

µ_i

2000

6000

0.001-1

0.5-30

10-50

Flux Density @ Field Strength

Gauss
Oersted

5100

Mittlere Feld-

Linienlänge

Oberfläche

Volumen

Residual Flux Density

Gauss

B_r

1800

3.12 cm

0.15cm³

0.47 cm³

Coercive Force

Oersted

H_c

0.25

Sättigungsflußdichte

10 Oe (Gauß)

4600

Vol.Widerstand Ω/cm

10²

Loss Factor @ Frequency

10 ^-6MHz

Tan δ/ µ_i

0.1

Remanenzflußdichte

10 Oe (Gauß)

1150

Σl/A(cm^-1)

20.8

Temperature Coefficient of Initial Permeability (20 -70°C)

%/°C

1.2

Density gm/cm³

≈4.7 g/cm³

Curie Temperature

°C

T_c

˃200

Resistivity

Ohm-cm

1×10⁵

Electrical Specifications

Bestellnr.

Kern-Material

Item

Unit/Symbol

Condition

Value

A_L-Toleranz

FT50A-72

Ferrit Toroid

A_L

nH/N2

@ 10 KHz

1300

±25%

NiZn

N/A

3.12

±10%

cm²

N/A

0.15

±10%

cm³

N/A

0.47

±10%

Initial Permeability

µ0

@ B < 10 gauss

2000

±20%

Temp. Coeff. Of initial

Permeability

% °C

20-70°C

0.7

Typ.

Coercive Force

oersted

0.30

Typ.

Residual Flux Density

Gauss, Br

N/A

1800

Typ.

Flux Density

Gauss, B

Initial (B), oersted

5100

Typ.

Gauss, H @

@ Field Strength (H), oersted

Typ.

Curie temperature

°C

˃200

Nom.

Resistivity

Ω cm. p

@ Field Strength

10²

Typ.

Loss Factor

1×10⁸Tan δ/ µ_i

Initial

Typ.

MHz

@ Frequency

0.1

Typ.

Chart Legend

Σl/A(cm^-1):

l_e :

A_e :

V_e :

A_L :

Core Constant

Effective Path Length

Effective Cross-Sectional

Effective Core Volume

Inductance Factor

20.9

2.95

0.129

0.38

1300

±25%

Dimensional Tolerances

Case

Toleranz

Weight

Gewicht

B (Outer Diameter)/mm

0.500

±0.010

12.7

±0.25

2.40 g

2.40 gramm

A (Inner Diameter)/mm

0.312

±0.008

7.90

±0.20

---

H (Height)/mm

0.25

±0.010

6.35

-0.25

---

Ferrite Material Constants

Specific Heat

0.25 cal/g/°C

Thermal Conductivity

3.5 - 4.5 mW/cm-°C

Coefficient of Linear Expansion

8 - 10x10^-6/°C

Tensile Strength

4.9 kgf/mm²

Compressive Strength

42 kgf/mm²

Young's Modulus

15x10³ kgf/mm²

Hardness (Knoop)

650

Specific Gravity

≈4.7 g/cm³

Die oben genannten Eigenschaften sind typisch für Amidon MnZn- und NiZn-Ferrite.

The above quoted properties are typical for Amidon MnZn and NiZn ferrites.

FT50A-75

MATERIAL A - 75 (Permeabilität 5000)

A-75 Material Characteristics

Property

Item

Unit/

Symbol

Value

Max.

Permeabilität

Freq. MHz Reso-nanz

Freq. MHz

Breit-band

Freq.

MHz

Drossel

Initial Permeability@ B < 10 gauss

µ_i

5000

0.001-1

0.15-12

1.0-20

Flux Density @ Field Strength

Gauss
Oersted

4300

@ 1194 A/m, 15 oe mT

Mittlere Feld-

Linienlänge

Oberfläche

Volumen

Residual Flux Density

Gauss

B_r

1400

31.7 cm

14 cm²

451 cm²

Coercive Force

Oersted

H_c

0.16

Sättigungsflußdichte

10 Oe (Gauß)

2500

Vol.Widerstand Ω/cm

10²

Loss Factor @ Frequency

10 ^-6MHz

Tan δ/ µ_i

0.1

Remanenzflußdichte

10 Oe (Gauß)

1400

Σl/A(cm^-1)

22.9

tan δ/ μi

≤12·10^-6

Test conditions

100 kHz, 0.5 mT, 25°C

Temperature Coefficient of Initial Permeability (20 -70°C)

%/°C

0.6

Density gm/cm³

≈4.7 g/cm³

Curie Temperature

°C

T_c

>140

Resistivity

Ohm-cm

300

1×10^²

Electrical Specifications

Bestellnr.

Kern-Material

Item

Unit/Symbol

Condition

Value

(nH/T²)

A_L-Toleranz

FT50A-75

Ferrit Toroid

A_L

nH/N²

@ 10 KHz

3000

10 kHz

±20%

MnZn

≥0.9 x A_L

@ 10 kHz

200 kHz

Test conditions: 0.5 mT (For N = 1 use 1.49 mA), 25°C

Relative Loss Factor

10 ^-6

Tan δ/ µ_i

˂20

kHz

@frenquency

100

Max. Usable freq.

MHz

50% roll-off

˂1

Remanence

G, mT

Typical

1000, 100

Disaccommodation Factor

10 ^-6

Typical

˂3

Power Loss (P_L), Sine Wave, in mW/cm³ (typical)

Condition

25°C

@60°C

@100°C

@120°C

25 kHz

N/A

200 mT

N/A

2000 G

N/A

100 kHz

N/A

100 mT

N/A

1000 G

N/A

III

500 kHz

N/A

50 mT

N/A

500 G

N/A

700 kHz

N/A

50 mT

N/A

500 G

N/A

3.12

±10%

cm²

N/A

0.15

±10%

cm³

N/A

0.47

±10%

WaAc

N/A

0.07

Initial Permeability

µ0

@ B < 10 gauss

5000

±25%

Temp. Coeff. Of initial

Permeability

% °C

20-70°C

0.6

Typ.

Coercive Force

oersted

0.16

Typ.

Residual Flux Density

Gauss, Br

N/A

1400

Typ.

Flux Density

Gauss, B

Initial (B), oersted

4300

Typ.

Gauss, H @

@ Field Strength (H), oersted

Typ.

Curie temperature

°C

> 140

Nom.

Resistivity

Ω cm. p

@ Field Strength

10²

Typ.

Loss Factor

Tan δ/ µ_i

Initial

Typ.

MHz

@ Frequency

0.1

Typ.

Chart Legend

Σl/A(cm^-1):

l_e :

A_e :

V_e :

A_L :

WaAc

Core Constant

Effective Path Length

Effective Cross-Sectional

Effective Core Volume

Inductance Factor

0.07

20.8

3.12

0.15

0.47

3000

Dimensional Tolerances

Case

Toleranz

Weight

Gewicht

B (Outer Diameter)/mm

0.500

0.510 Max

12.7

12.96 Max

2.40 g

A (Inner Diameter)/mm

0.311

0.312 Min

7.92

7.67 Min

---

H (Height)/mm

0.250

0.257 Max

6.35

6.53 Max

---

Ferrite Material Constants

Specific Heat

0.25 cal/g/°C

Thermal Conductivity

3.5 - 4.5 mW/cm-°C

Coefficient of Linear Expansion

8 - 10x10^-6/°C

Tensile Strength

4.9 kgf/mm²

Compressive Strength

42 kgf/mm²

Young's Modulus

15x10³ kgf/mm²

Hardness (Knoop)

650

Specific Gravity

≈4.7 g/cm³

Die oben genannten Eigenschaften sind typisch für Amidon MnZn- und NiZn-Ferrite.

The above quoted properties are typical for Amidon MnZn and NiZn ferrites.

Ferrit-Ringkern für Breitbandtransformatoren

FT50A-77

MATERIAL 77 (Permeabilität 2050)

77 Material Characteristics

Property

Item

Unit/

Symbol

Permea-bilität

Max.

Permeabilität

Freq. MHz Reso-nanz

Freq. MHz

Breit-band

Freq.

MHz

Drossel

Initial Permeability@ B < 10 gauss

µ_i

2050

6000

0.001-1

0.5-30

10-50

Flux Density @ Field Strength

Gauss
Oersted

5100

Mittlere Feld-

Linienlänge

Oberfläche

Volumen

Residual Flux Density

Gauss

B_r

1800

3.12 cm

0.15cm³

0.47 cm³

Coercive Force

Oersted

H_c

0.25

Sättigungsflußdichte

10 Oe (Gauß)

4600

Vol.Widerstand Ω/cm

10²

Loss Factor @ Frequency

10 ^-6MHz

Tan δ/ µ_i

0.1

Remanenzflußdichte

10 Oe (Gauß)

1150

Σl/A(cm^-1)

20.8

Temperature Coefficient of Initial Permeability (20 -70°C)

%/°C

1.2

Density gm/cm³

≈4.7 g/cm³

Curie Temperature

°C

T_c

˃200

Resistivity

Ohm-cm

100

1×10⁵

Electrical Specifications

Bestellnr.

Kern-Material

Item

Unit/Symbol

Condition

Value

A_L-Toleranz

FT50A-77

Ferrit Toroid

A_L

nH/N2

@ 10 KHz

1300

±25%

NiZn

N/A

3.12

±10%

cm²

N/A

0.15

±10%

cm³

N/A

0.47

±10%

Initial Permeability

µ0

@ B < 10 gauss

2050

±20%

Temp. Coeff. Of initial

Permeability

% °C

20-70°C

0.7

Typ.

Coercive Force

oersted

0.30

Typ.

Residual Flux Density

Gauss, Br

N/A

1800

Typ.

Flux Density

Gauss, B

Initial (B), oersted

5100

Typ.

Gauss, H @

@ Field Strength (H), oersted

Typ.

Curie temperature

°C

˃200

Nom.

Resistivity

Ω cm. p

@ Field Strength

10²

Typ.

Loss Factor

1×10⁸Tan δ/ µ_i

Initial

Typ.

MHz

@ Frequency

0.1

Typ.

Chart Legend

Σl/A(cm^-1):

l_e :

A_e :

V_e :

A_L :

Core Constant

Effective Path Length

Effective Cross-Sectional

Effective Core Volume

Inductance Factor

20.9

2.95

0.129

0.38

1300

±25%

Dimensional Tolerances

Case

Toleranz

Weight

Gewicht

B (Outer Diameter)/mm

0.500

±0.010

12.7

±0.25

2.40 g

2.40 gramm

A (Inner Diameter)/mm

0.312

±0.008

7.90

±0.20

---

H (Height)/mm

0.25

±0.010

6.35

-0.25

---

Ferrite Material Constants

Specific Heat

0.25 cal/g/°C

Thermal Conductivity

3.5 - 4.5 mW/cm-°C

Coefficient of Linear Expansion

8 - 10x10^-6/°C

Tensile Strength

4.9 kgf/mm²

Compressive Strength

42 kgf/mm²

Young's Modulus

15x10³ kgf/mm²

Hardness (Knoop)

650

Specific Gravity

≈4.7 g/cm³

Die oben genannten Eigenschaften sind typisch für Amidon MnZn- und NiZn-Ferrite.

The above quoted properties are typical for Amidon MnZn and NiZn ferrites.

FT50A-82

MATERIAL 82 (Permeabilität 2050)

82 Material Characteristics

Property

Item

Unit/

Symbol

Permea-bilität

Max.

Permeabilität

Freq. MHz Reso-nanz

Freq. MHz

Breit-band

Freq.

MHz

Drossel

Initial Permeability@ B < 10 gauss

µ_i

2050

6000

0.001-1

0.5-30

10-50

Flux Density @ Field Strength

Gauss
Oersted

5100

Mittlere Feld-

Linienlänge

Oberfläche

Volumen

Residual Flux Density

Gauss

B_r

1800

3.12 cm

0.15cm³

0.47 cm³

Coercive Force

Oersted

H_c

0.25

Sättigungsflußdichte

10 Oe (Gauß)

4600

Vol.Widerstand Ω/cm

10²

Loss Factor @ Frequency

10 ^-6MHz

Tan δ/ µ_i

0.1

Remanenzflußdichte

10 Oe (Gauß)

1150

Σl/A(cm^-1)

20.8

Temperature Coefficient of Initial Permeability (20 -70°C)

%/°C

1.2

Density gm/cm³

≈4.7 g/cm³

Curie Temperature

°C

T_c

˃200

Resistivity

Ohm-cm

100

Electrical Specifications

Bestellnr.

Kern-Material

Item

Unit/Symbol

Condition

Value

A_L-Toleranz

FT50A-82

Ferrit Toroid

A_L

nH/N2

@ 10 KHz

1300

±25%

NiZn

N/A

3.12

±10%

cm²

N/A

0.15

±10%

cm³

N/A

0.47

±10%

Initial Permeability

µ0

@ B < 10 gauss

2050

±20%

Temp. Coeff. Of initial

Permeability

% °C

20-70°C

0.7

Typ.

Coercive Force

oersted

0.30

Typ.

Residual Flux Density

Gauss, Br

N/A

1800

Typ.

Flux Density

Gauss, B

Initial (B), oersted

5100

Typ.

Gauss, H @

@ Field Strength (H), oersted

Typ.

Curie temperature

°C

˃200

Nom.

Resistivity

Ω cm. p

@ Field Strength

10²

Typ.

Loss Factor

1×10⁸Tan δ/ µ_i

Initial

Typ.

MHz

@ Frequency

0.1

Typ.

Chart Legend

Σl/A(cm^-1):

l_e :

A_e :

V_e :

A_L :

Core Constant

Effective Path Length

Effective Cross-Sectional

Effective Core Volume

Inductance Factor

20.9

2.95

0.129

0.38

1300

±25%

Dimensional Tolerances

Case

Toleranz

Weight

Gewicht

B (Outer Diameter)/mm

0.500

±0.010

12.7

±0.25

2.40 g

2.40 gramm

A (Inner Diameter)/mm

0.312

±0.008

7.90

±0.20

---

H (Height)/mm

0.25

±0.010

6.35

-0.25

---

Ferrite Material Constants

Specific Heat

0.25 cal/g/°C

Thermal Conductivity

3.5 - 4.5 mW/cm-°C

Coefficient of Linear Expansion

8 - 10x10^-6/°C

Tensile Strength

4.9 kgf/mm²

Compressive Strength

42 kgf/mm²

Young's Modulus

15x10³ kgf/mm²

Hardness (Knoop)

650

Specific Gravity

≈4.7 g/cm³

Die oben genannten Eigenschaften sind typisch für Amidon MnZn- und NiZn-Ferrite.

The above quoted properties are typical for Amidon MnZn and NiZn ferrites.

< Zurück

Weiter >

Wir freuen uns, dass Sie unseren Webshop für Ringkerne und HF -Spezialbauteile besuchen. Amidon.de

AMIDON-DEUTSCHLAND

FT50-72

FT50-75

FT50-77

FT50-82

FT50-85

FT50-86

FT50-93

FT50-98

FT50-W76/98

FT50-F

FT50-J

FT50-W

FT50-WC

FT50A-16

FT50A-27

FT50A-34

FT50A-43

MATERIAL A-43 (Permeabilität 850)

Features

NiZn ferrite material with a range for inductive applications up to 25 MHz, that can be used for EMI applications to suppress noise frequencies above 200 MHz.

Burnished to break sharp edges, can contain Parylene C coat at smaller diameters from the length of 9.5mm (0.375") or a uniform coating of thermo-set plastic at larger dimensions (if part numbers ends with a C).

Coating Options:

Chart LegendΣl/A : Core Constant, le : Effective Path Length, Ae : Effective Cross-Sectional Area, Ve : Effective Core VolumeAL : Inductance Factor

43 Material is used for EMI/RFI suppression in the 20 MHz to 250 MHz range.

FT50A-61

FT50A-63

FT50A-67

FT50A-68

FT50A-72

FT50A-75

FT50A-77

FT50A-82

Chart Legend
Σl/A : Core Constant, l_e : Effective Path Length, A_e : Effective Cross-Sectional Area, V_e : Effective Core Volume
A_L : Inductance Factor
